Right-Hand Side Cab Access

Raise feeder house.

causym CAUTION: Engine must be off, parking brake set and key removed.

Turn engine off, remove key and lower safety stop.

IMPORTANT: Close cab door before using safety rail next to cab door.

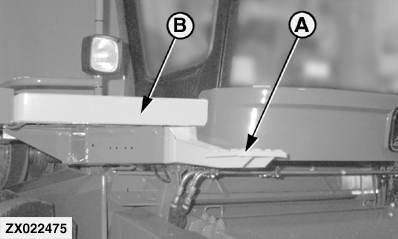

Use step (A) to get to landing (B).

ZX022475


A-Access step
B-Landing

OUZXMAG,0001867 -19-05OCT02-1/1
