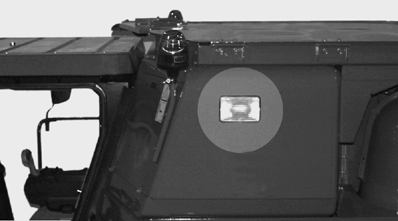

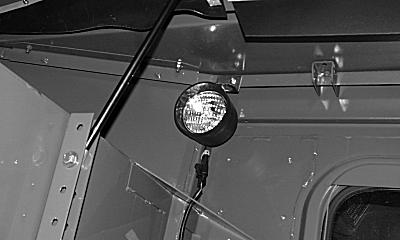

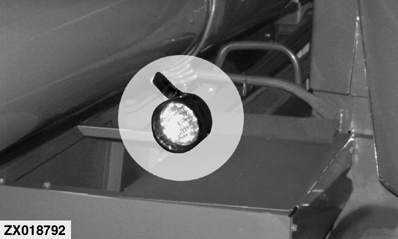

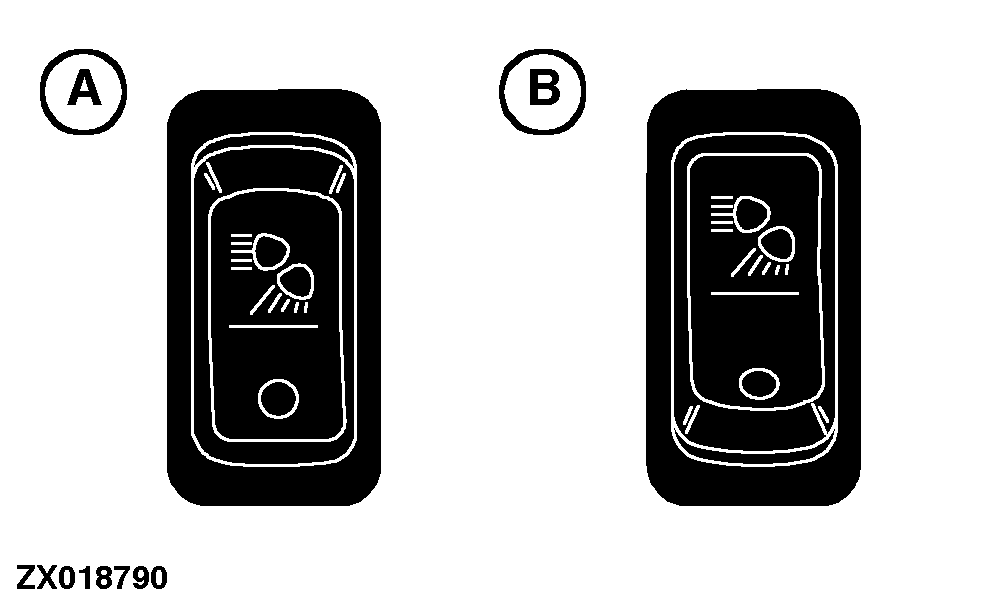

Field LightsThe two position (on and off) field light switch controls warning lights, all headlights, grain tank light and unloading auger light. Unloading auger light The unloading auger light operates only when the field light switch is on and the auger is swung out at least 10 degrees. Grain tank light The grain tank light operates with the field light switch.
|
|
OUZXMAG,0001868 -19-05OCT02-1/2 |
|

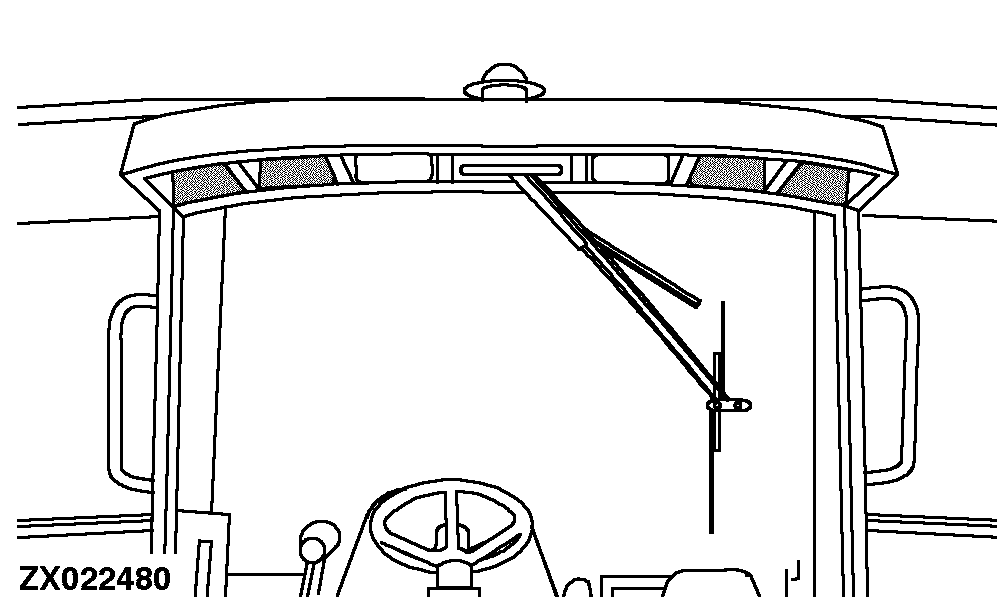

The two position (on and off) field light switch controls also the side finder lights and the row finder lights. Side finder lights The side finder lights are used when additional light to the sides is needed. These lights are controlled by the turn signal lever and operate only when the light switch is in either of the field light positions. These lights do not work when the flashing warning lights are on. Row finder lights Additional lights are available for better overall visibility of the ends of the header and for improved visibility in front of the header. The lights are attached to the left and right handrails on each side of the cab. |
|
OUZXMAG,0001868 -19-05OCT02-2/2 |
