Pulling Combine Out of the Mud

causym CAUTION: Always use a suitable chain/cable. Do not exceed the breaking strength. Do not mix chain with tow straps or ropes. Energy stored in the towing device could cause serious bodily injury if it should break.

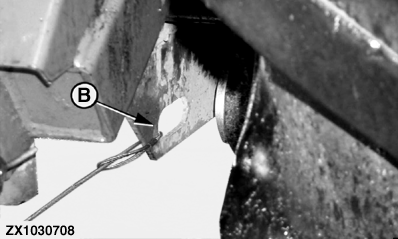

- Pull out the combine in the forward direction by attaching a towing bar at the hook (A) or a chain/cable at the left AND right-hand hook (B). Be certain the chains/cables will not damage any hydraulic lines.

ZX1030710
ZX1030708

OUZXMAG,0001871 -19-07OCT02-1/2

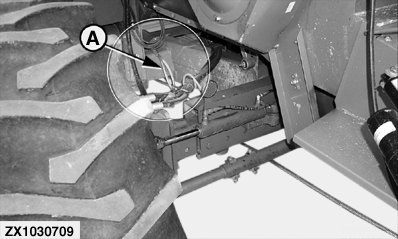

- Pull out the combine in the rearward direction by attaching a chain or cable (A) around the main axle (as shown) on BOTH side of the combine. Be certain the chains/cables will not damage any hydraulic lines.

ZX1030709

OUZXMAG,0001871 -19-07OCT02-2/2
