Transporting Combine on a Trailer
1.
Empty grain tank and remove header.
2.

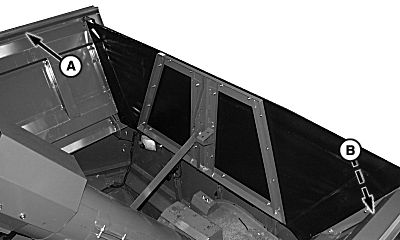

To reduce overall height, swing unloading auger back, close grain tank covers (A) and (B).
A-Grain Tank Covers
B-Grain Tank Covers
|
|
|
|
OUZXMAG,0001876 -19-07OCT02-1/6
|
|
3.

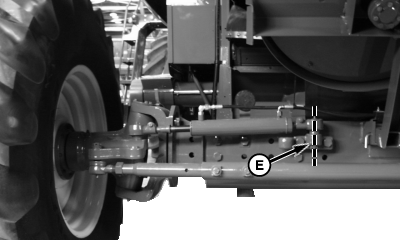

Adjust the rear axle to the smallest position. It is also required to attach steering cylinder (both sides) to position (E).
4.
Drive combine on trailer and put multifunction lever in neutral.
5.
Fold radio antenna down.
E-Position
|
|
|
|
OUZXMAG,0001876 -19-07OCT02-2/6
|
|
6.

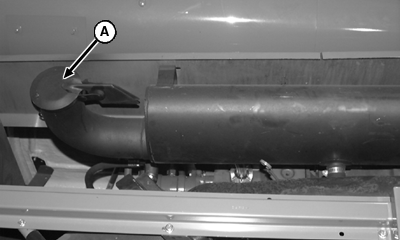

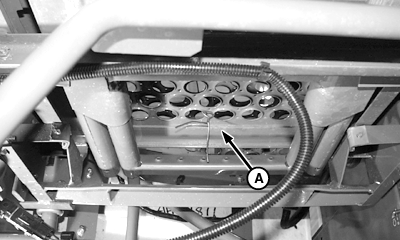

Tape exhaust pipe cap (A) closed to prevent damage to turbocharger.
7.
Wire down cover over engine.
8.
Swing rear warning lamps forward.
A-Exhaust Pipe Cap
|
|
|
|
OUZXMAG,0001876 -19-07OCT02-3/6
|
|
9.

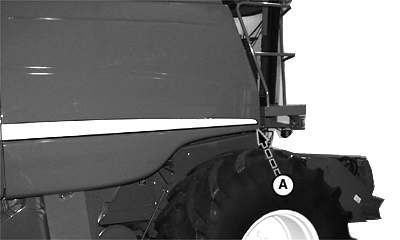

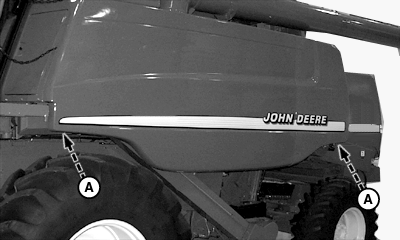

Wire down ladder extension and platform (A).
A-Ladder Extension and Platform
|
|
|
|
OUZXMAG,0001876 -19-07OCT02-4/6
|
|
10.

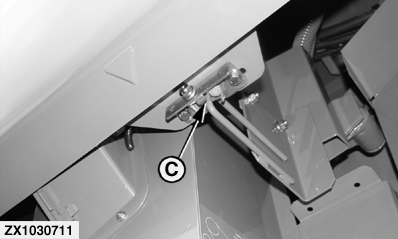

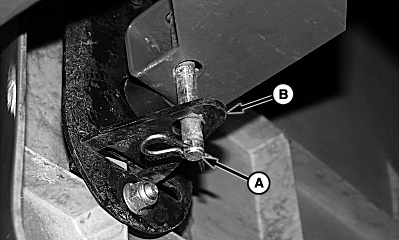

Make sure that pin (A) is installed through locking plate (B) and retained with spring pin and door latch (C) is fully engaged.
A-Pin
B-Locking Plate
C-Door Latch
|
|
|
|
OUZXMAG,0001876 -19-07OCT02-5/6
|
|
11.

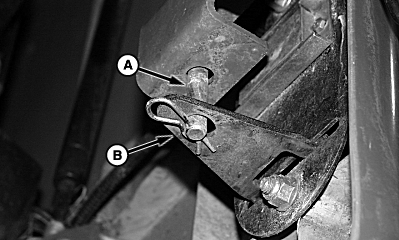

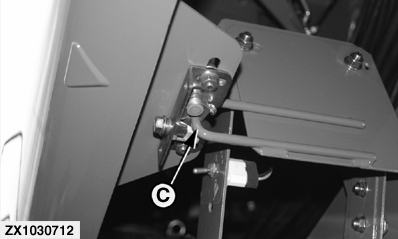

Make sure that pin (A) is installed through locking plate (B) and retained with spring pin and door latch (C) is fully engaged.
IMPORTANT:
Fasten combine to trailer with chains.
A-Pin
B-Locking Plate
C-Door Latch
|
Left-Hand Front Corner Pin
|
|
|
OUZXMAG,0001876 -19-07OCT02-6/6
|
|
