Shifting Feeder House/Header Reverser

IMPORTANT: Reel must be raised before engaging reverser. Backing out a crop "slug" into a turning reel will bend it.

Allow header to come to a complete stop before shifting feeder house reverser.

1. Stop header by switching off yellow header drive switch.

2. Throttle engine to slow idle.

3. Pull back and hold down on electro feeder house reverser button.

4. Release feeder house button as soon as feeder house is free of "slug".

5. Keep engine to slow idle prior to re-engage header.

6. Resume harvesting.

IMPORTANT: During reverser operation, never attempt to force "slugs" through combine by repeated cycling of reverser drive. Repeated cycling shortens life of components.

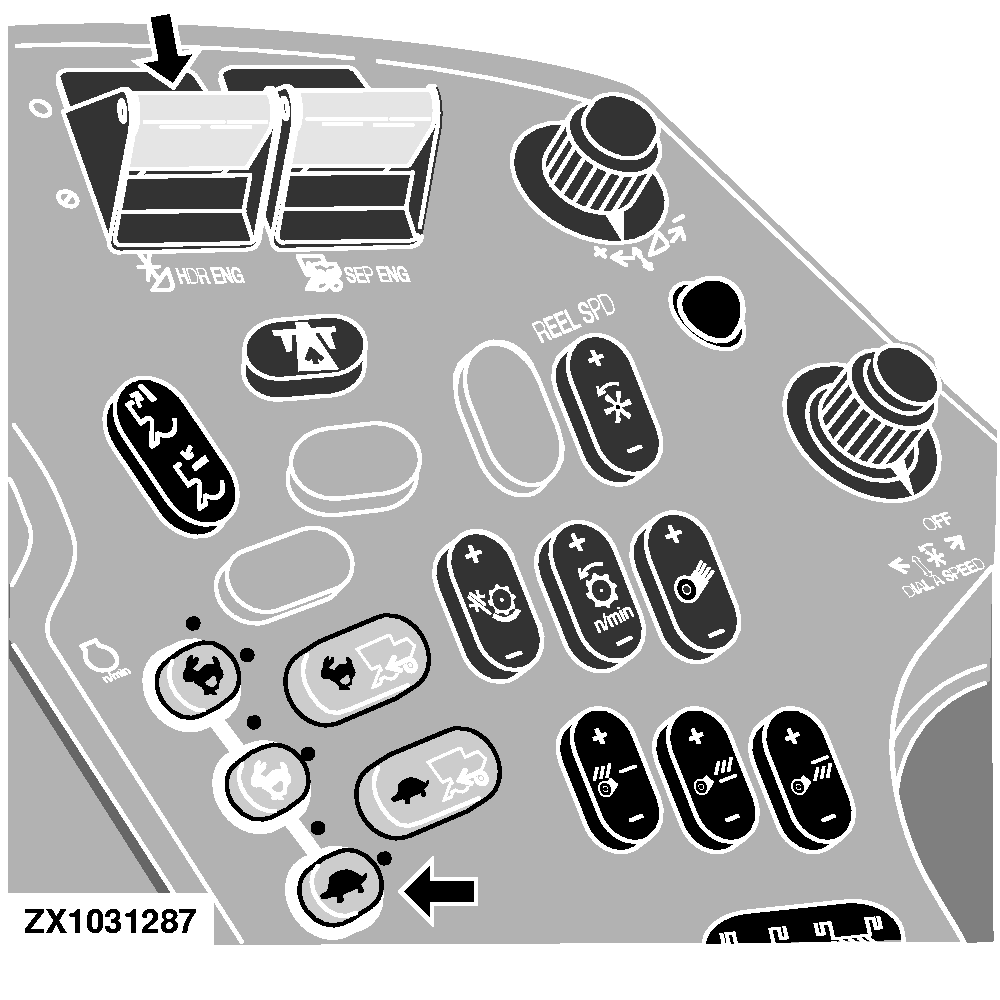

ZX1031287

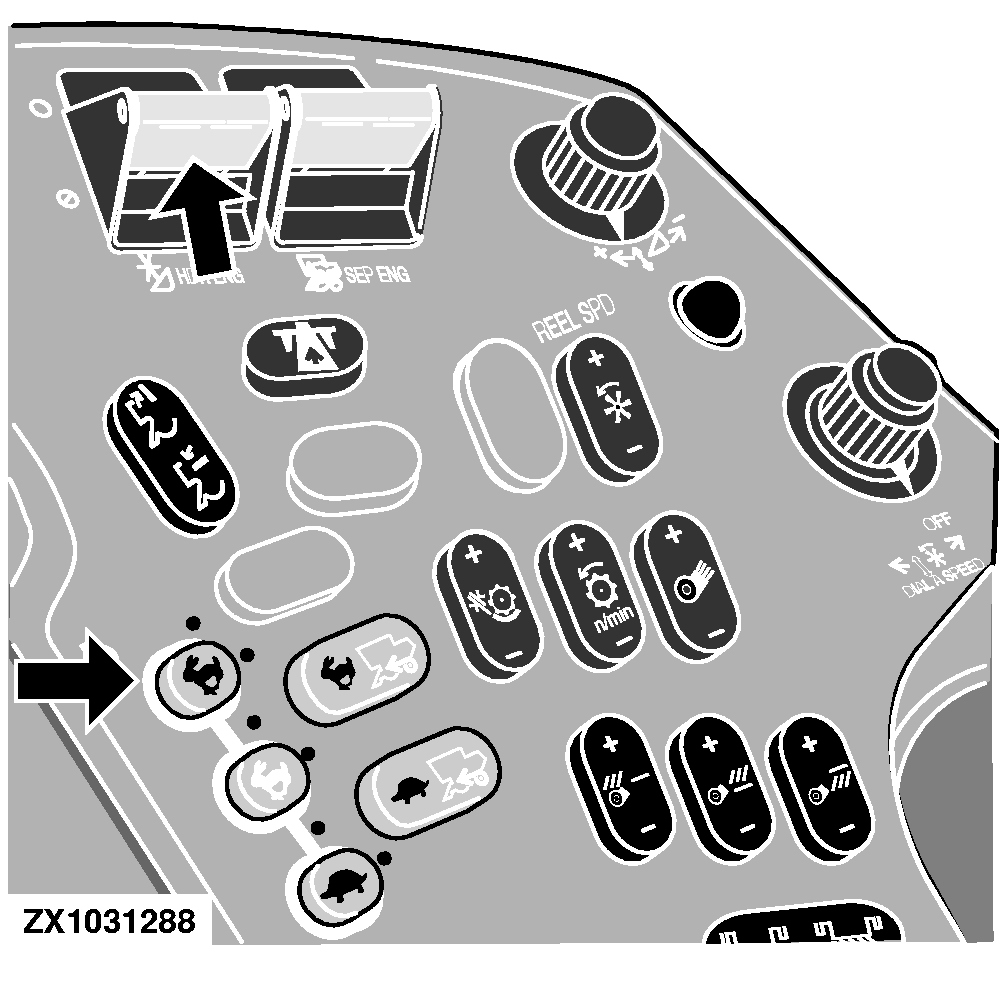

ZX1031288

OUZXMAG,000187A -19-08OCT02-1/1
