High-Range Direct Drive (480-990 RPM)

CAUTION: Shut of engine, set parking brake and remove key.

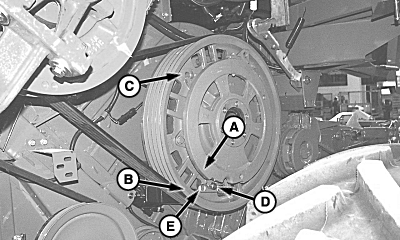

Align notched area of wheel (A) to one of three holes in gear case sheave (B). Notch area may have to be rotated 360° up to three times to align holes in cylinder drive sheave and speed pickup casting (C).

Insert pin (D) in hole and into speed pickup casting and secure with safety pin (E).

A-Wheel
B-Sheave
C-Speed pickup casting
D-Pin
E-Safety pin
