Setting Cylinder Access Door to Cylinder

If the front door is not correctly adjusted, crop can feed back down on the top of the feeder house.

Loosen nuts (A) holding U-bolt (B) to cylinder front door sheet (C).

Position sheet to 12 mm (0.5x in.) (D) between sheet and rasp bar (E).

Tighten nuts.

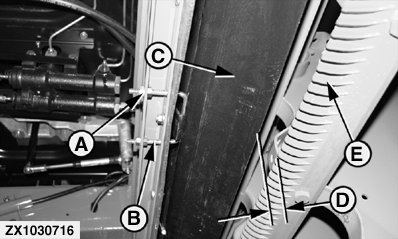

ZX1030716


A-Nuts
B-U-Bolt
C-Sheet
D-12 mm (0.5 in.)
E-Tip of Rasp Bar

OUZXMAG,0001897 -19-09OCT02-1/1
