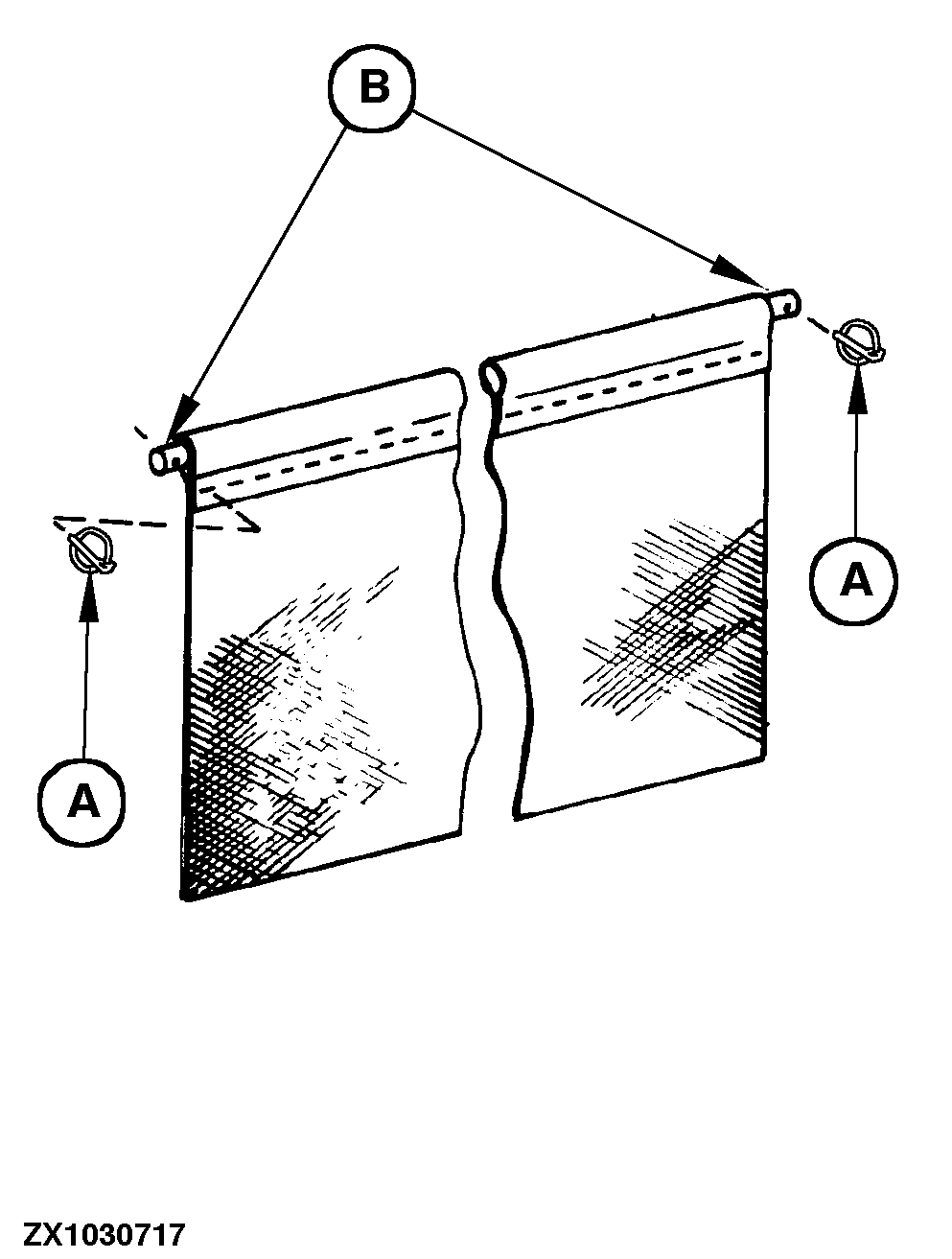

Separator CurtainsCurtains control the flow of material from the beater over the straw walkers. A curtain is removed from inside the combine. To remove curtain, remove quick lock pins (A). Push one end of pipe (B) inside of side sheet. Remove curtain by sliding pipe through curtain.
|
|
