Replacing Rasp Bars and Filler Plate (Option)

Bent rasp bars must be replaced immediately because they can cause machine damage or let unthreshed grain pass.

Replacement rasp bars are sold in left- or right-hand matched sets of five.

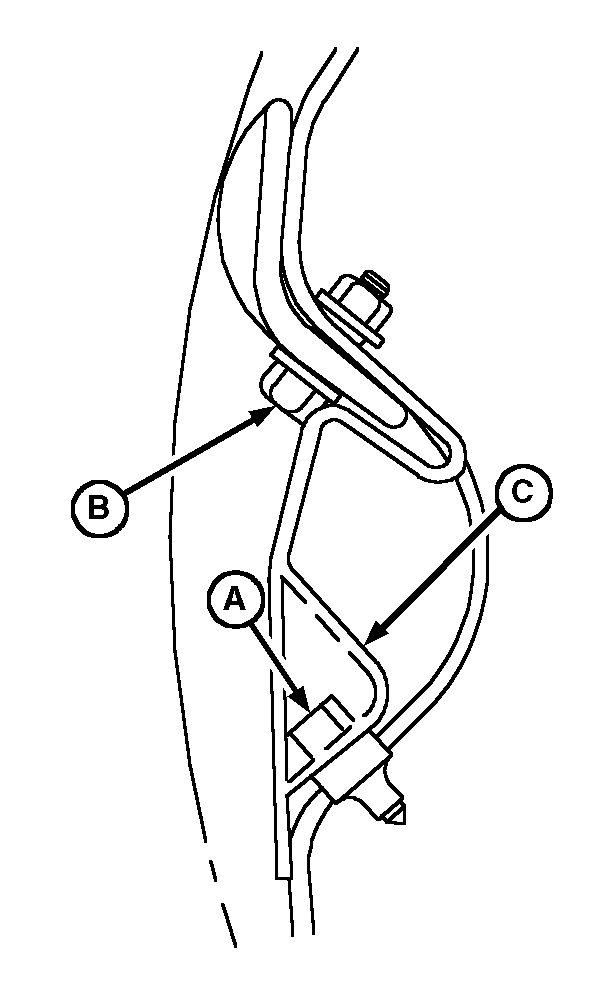

Torque cap screws (A) and (B) to specification.

Specification

IMPORTANT: If all rasp bars are replaced at one time, flutes on bars must be pointed in opposite directions. Dirt buildup will cause cylinder to be out of balance and must be cleaned out.

Filler plates (C) are not required for corn havesting.
