Operating the Chaff Spreader

To operate the chaff spreader, turn the knob (A) to the right. Adjust speed to spread chaff to header width.

A-Knob

OUZXMAG,00018BF -19-12OCT02-1/2

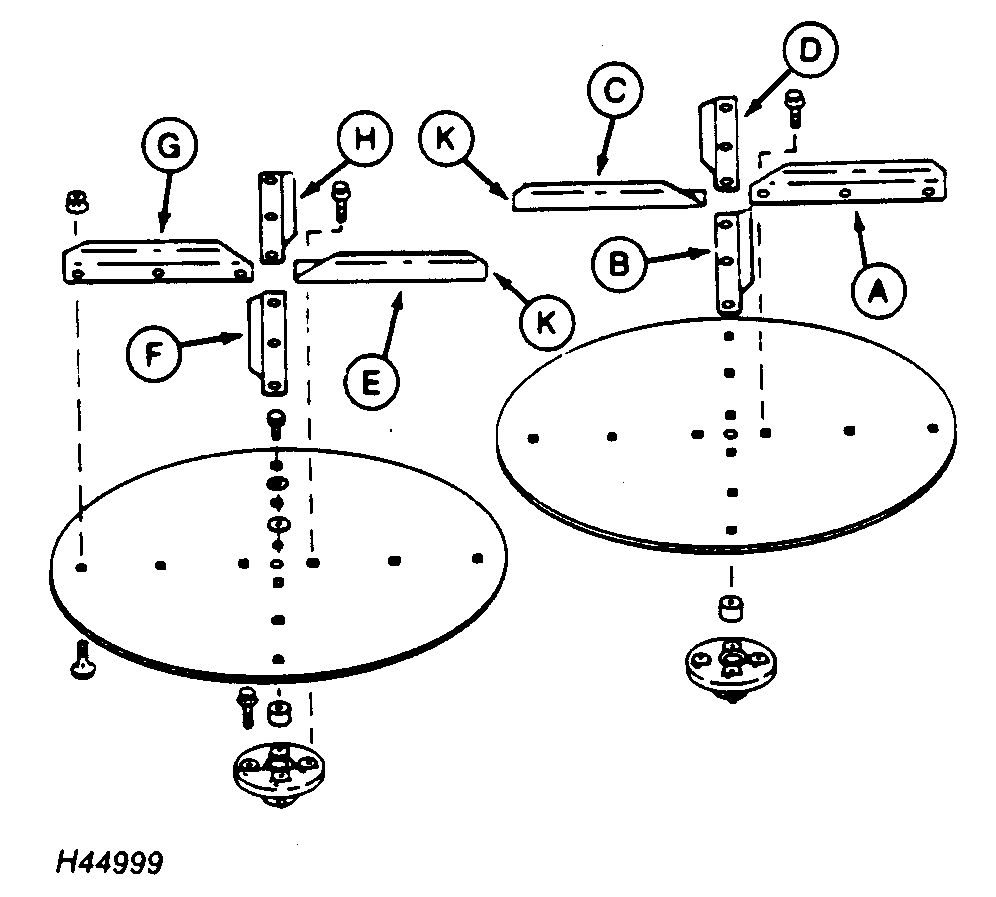

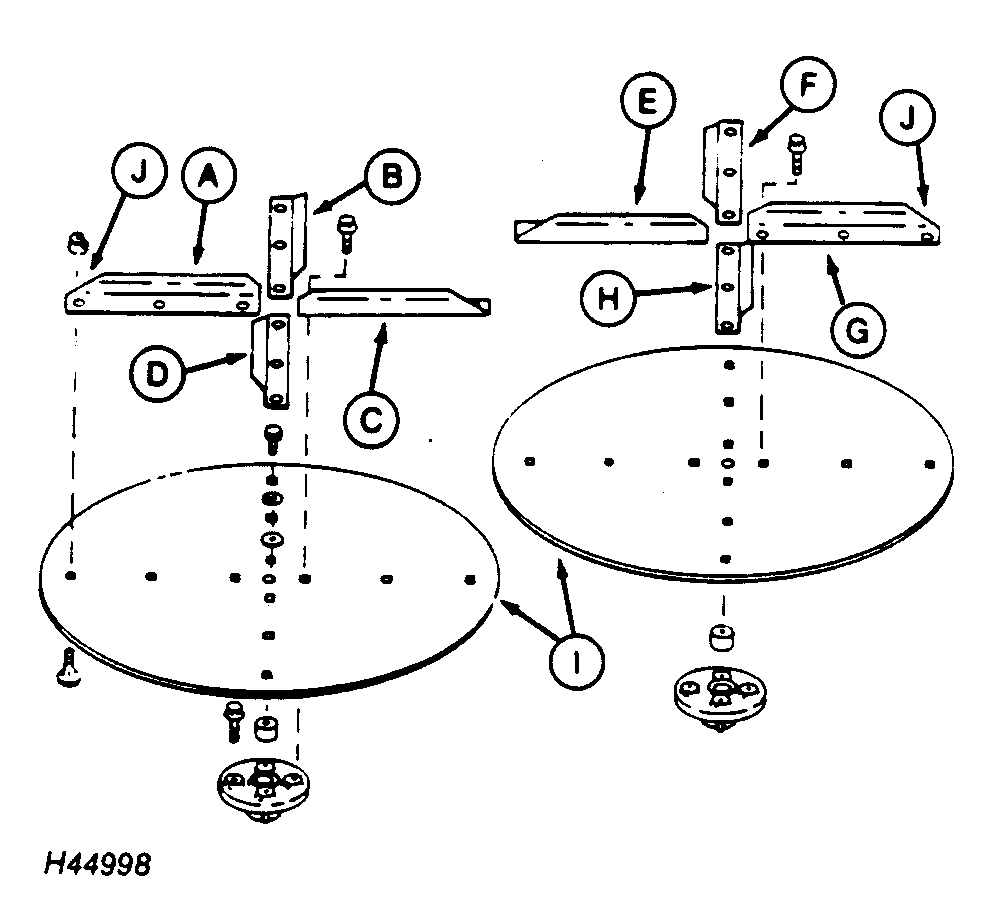

Should plugging occur between the disks (I) during operation, the vanes may have to be repositioned.

For corn or soybeans , the vanes should be positioned with 45° angle (J) installed to the outside of the disks.

For small grain , the vanes should be positioned with the square end (K) of the vanes installed to the outside.

When repositioning the vanes, the vanes (A), (B), (C), and (D) on the left-hand side disk must be reinstalled on the right-hand side disk.

The vanes (E), (F), (G) and (H) on the right-hand side disk must be reinstalled on the left-hand side disk.

A-D-Vane (L.h side disk)
E-H-Vane (R.h side disk)
I-Disks
J-45° angle
K-Square end

OUZXMAG,00018BF -19-12OCT02-2/2
