Removing Counter-Knives (Premium Model)

CAUTION: Engine must be off, key removed and parking brake set.

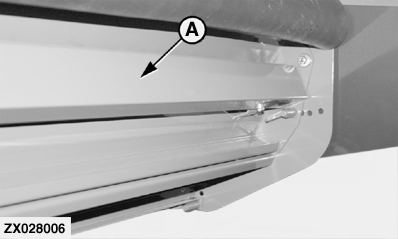

Loosen bolts of the cover strip (A) then remove it.

Pull out the counter-knives one by one.

CAUTION: These blades are sharp.

Install cover strip (A) back in place.

A-Cover Strip

OUZXMAG,00018D1 -19-12OCT02-1/1
