Chaff Spreader Working/Storage Positions

Storage Position

To place the chaff spreader into storage position, proceed as follows:

1. Disconnect the hydraulic hoses (A) and (B) from the chaff spreader motors.

Use the protective caps to prevent dirt from getting into the openings in the chaff spreader.

IMPORTANT: Insert the two ends of the hydraulic hoses together. This makes the chaff spreader inoperative. Secure the hydraulic hoses so that they cannot be damaged during combine operation.

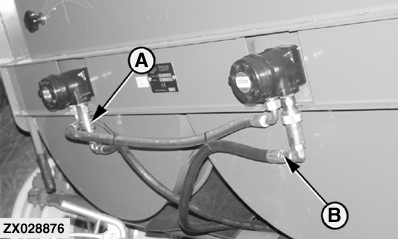

ZX028876


A-Pressure (connection) hose
B-Return (connection) hose

OUZXMAG,00018D4 -19-12OCT02-1/3

2. Connect hydraulic hoses (A) and (B) together. Secure hoses to support or rear axle so that hoses will not get pinched when operating combine.

3. Pull chaff spreader frame (C) rearward using handle (D).


A-Pressure (connection) hose
B-Return (connection) hose
C-Chaff spreader frame
D-Handle

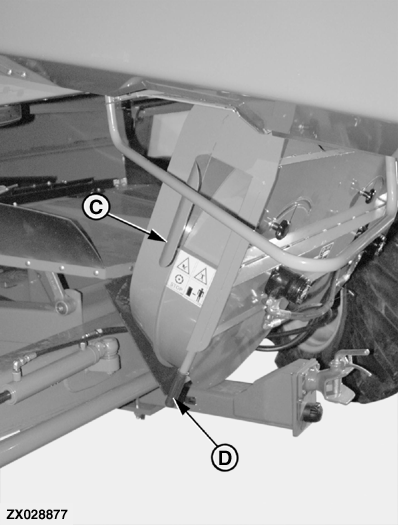

ZX028877

Chaff Spreader in Working Position

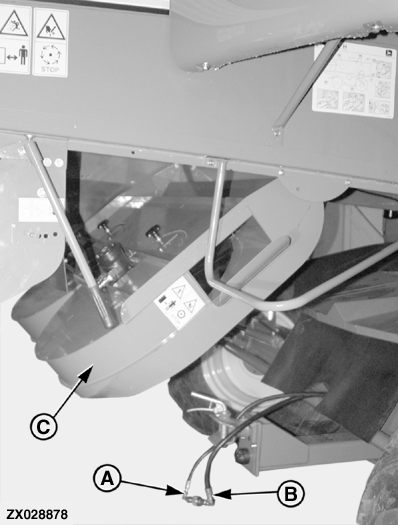

ZX028878

Chaff Spreader in Storage Position

OUZXMAG,00018D4 -19-12OCT02-2/3

ZX028876
ZX028878

Chaff Spreader in Storage Position
Working Position

To place the chaff spreader into working position, proceed as follows:

1. Push chaff spreader frame (C) forward using handle (D).

2. Connect the hydraulic hoses (A) and (B) to the chaff spreader motors.


A-Pressure (connection) hose
B-Return (connection) hose
C-Chaff spreader frame
D-Handle

ZX028877

Chaff Spreader in Working Position

OUZXMAG,00018D4 -19-12OCT02-3/3
