Vertical Adjustment of Auger Support Stud

NOTE: Periodically check to be sure that the auger fully slides into the stud when the auger is fully retracted. Readjust as needed.

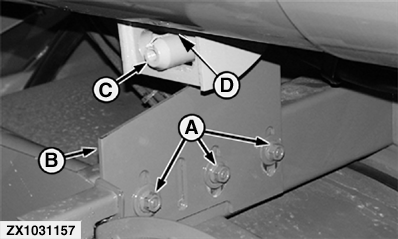

Loosen nuts (A) to adjust position of stud plate (B). Clearance (D) between top of stud (C) and slot, should be 0 to 3 mm (0 to 0.12 in.) when auger is empty. Tighten nuts.

Specification

A-Hardware
B-Plate
C-Stud
D-Clearance

OUZXMAG,00018F2 -19-14OCT02-1/1
