Removing Counter-Knives (Standard Model)

CAUTION: Engine must be off, key removed and parking brake set.

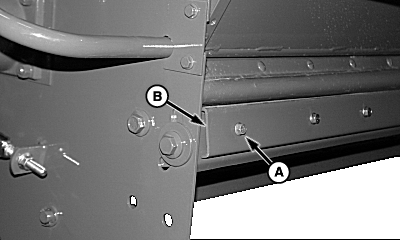

Remove cap screws (A).

Remove knife cover (B) to access counter-knives.

CAUTION: These blades are sharp.

Turn knives over for additional usage.

A-Cap Screws
B-Knife Cover

OUZXMAG,00018F4 -19-14OCT02-1/1
