Replacing Side Finder Light Bulb

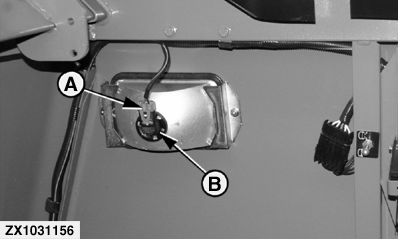

Disconnect wiring lead (A) and clean dirt from light.

Push in and twist retainer ring (B) counterclockwise. Bulb pulls straight out.

Install new bulb in reverse order.


A-Wiring Lead
B-Retainer Ring

ZX1031156

OUZXMAG,00018F5 -19-14OCT02-1/1
