Second Concave Adjustment

On Machine With Adjustable Turnbuckles:

Remove locking lever (A).

Adjust second concave (B) using handle (C).

Adjust turnbuckles to specification (D).

Specification

Second concave linkage -Distance 220 mm 8 21/32 in.

Lock lever in place with locking lever.


A-Locking Lever
B-Second Concave
C-Handle
D-220 mm (8 21/32 in.)

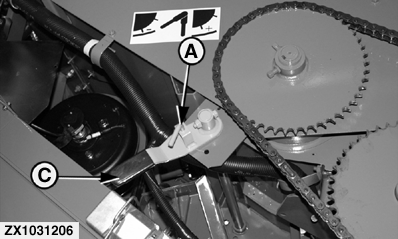

ZX1031206
ZX25233

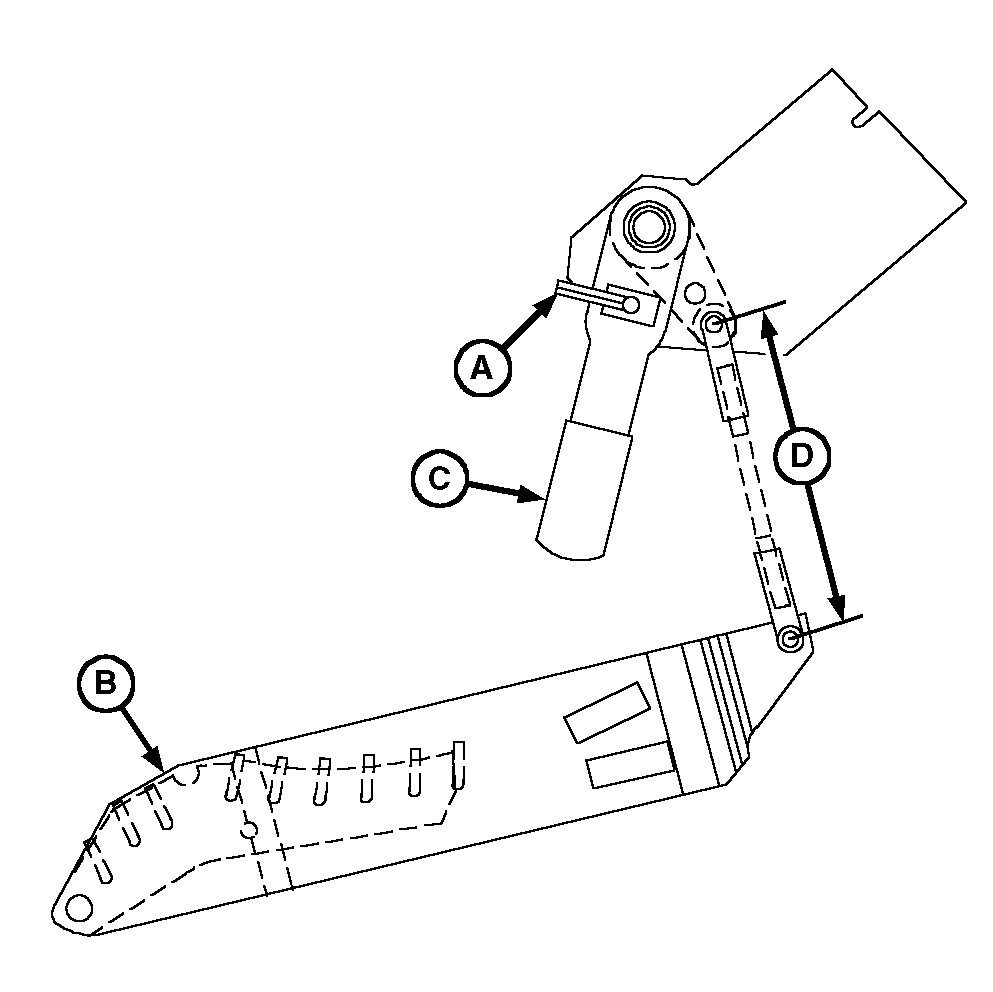

Second Concave With Adjustable Turnbuckles

OUZXMAG,00018F8 -19-14OCT02-1/2

On Machine Without Adjustable Turnbuckles:

Remove locking lever (A).

Adjust second concave (B) using handle (C).

NOTE: Link (D) is not adjustable.

Lock lever in place with locking lever.


A-Locking Lever
B-Second Concave
C-Handle
D-Link

ZX1031206
ZX1031160

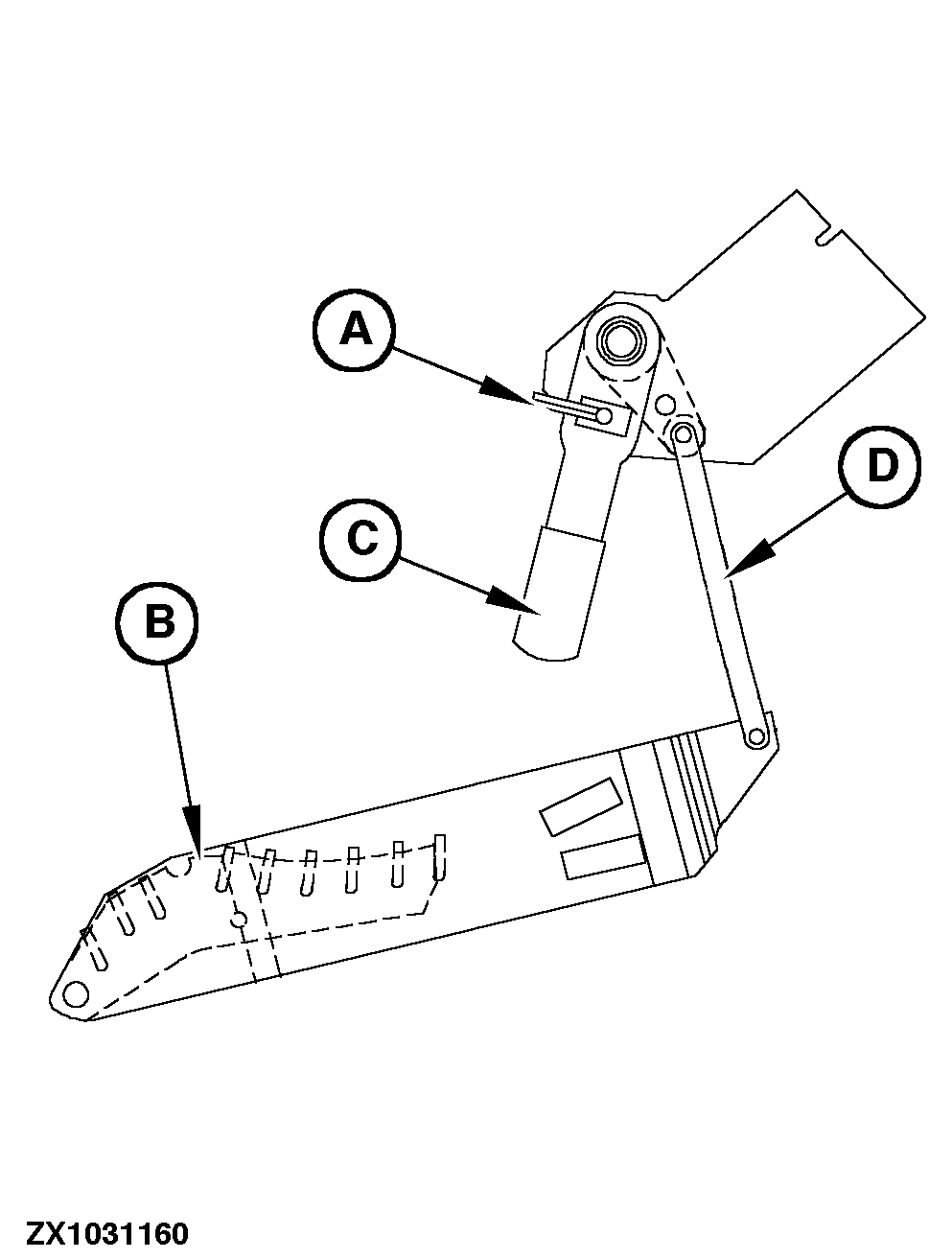

Second Concave Without Adjustable Turnbuckles
