Slip Clutch

causym CAUTION: Shut off engine, set parking brake and remove key.

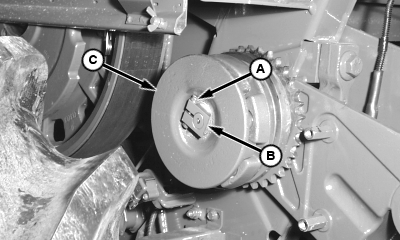

Machine With Spring Type Slip Clutch:

Loosen cap screw (A).

Adjust clamping nut (B) by turning clockwise or counterclockwise.

Adjust clutch (C) to adjusting length (X) specification.

Specification

Top Shaft Slip Clutch -Adjusting Length 10 mm (0.39 in.)

Tighten cap screw.


A-Cap Screw
B-Clamping Nut
C-Clutch
X-Adjusting Length

ZX25161

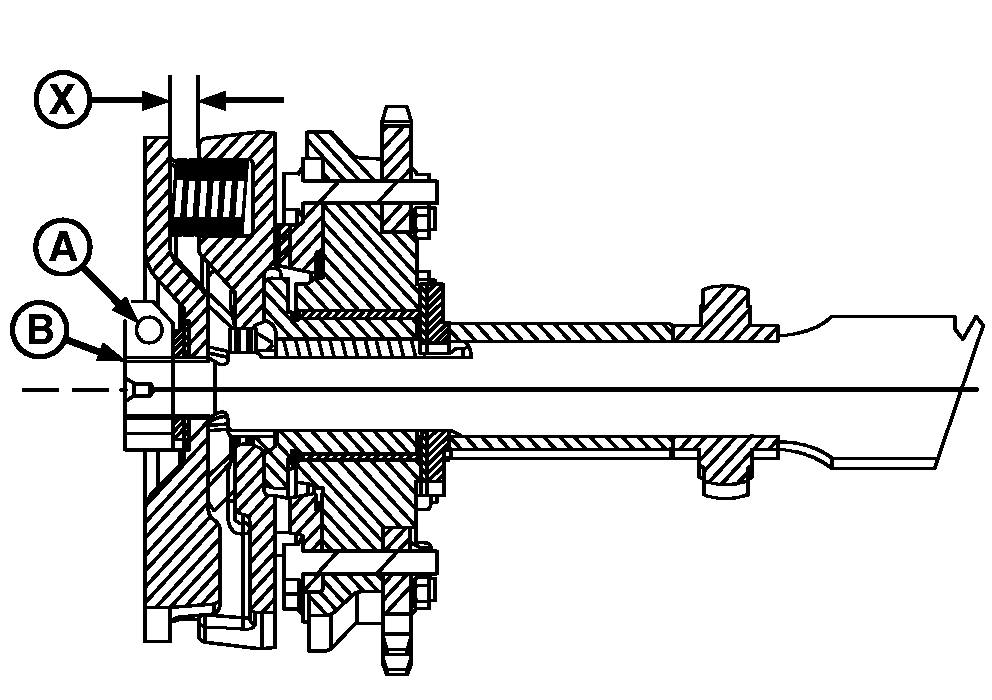

Spring Type Slip Clutch

ZX25119

OUZXMAG,00018FA -19-14OCT02-1/2

Machine With Ratchet Type Slip Clutch:

The ratchet type slip clutch (A) is factory set to 600 N·m (442 lb-ft) and is not adjustable.

ZX1031180

Ratchet Type Slip Clutch

OUZXMAG,00018FA -19-14OCT02-2/2
