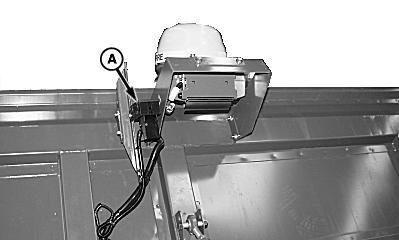

Adjusting Grain Tank Full IndicatorIMPORTANT: When the sensor is reversed, the sensor will then be higher than the grain tank extension. The full tank sensor (A) is located on the front grain tank cover. It turns on a blue light on the warning display panel and a buzzer until the sensor is de-activated. The blue light turns on immediately but there is a two seconds delay between the tripping of the sensor (A) and the buzzer sounding.
NOTE: Header drive must be on for the buzzer to sound. Adjust sensor (A) by moving it up or down in slot. This adjusts the switch "trip" point. |
|
CAUTION:
Shut off engine, set parking brake and remove key.
OUZXMAG,0001904 -19-15OCT02-1/1 |
