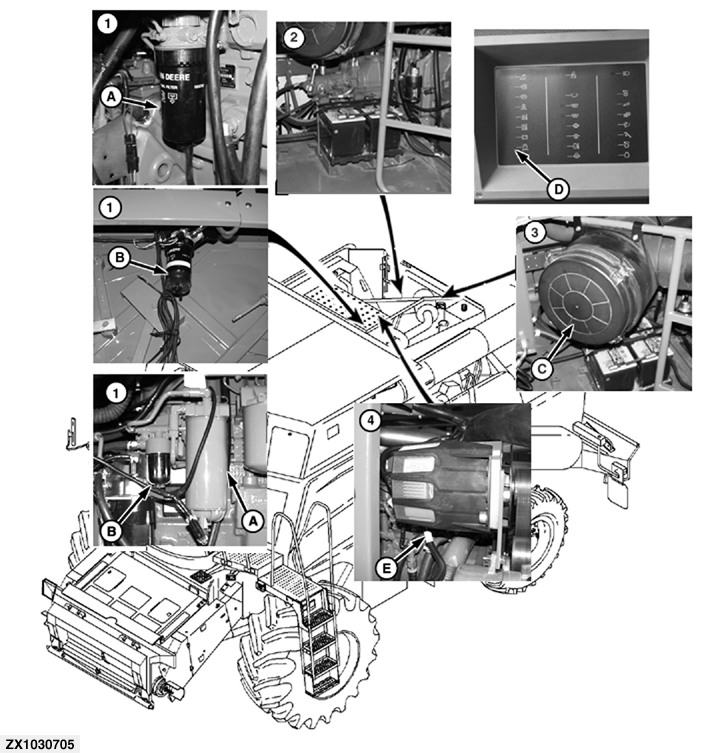

A-Fuel filter
B-Water separator filter

C-Primary filter

D-Warning light

E-Alternator screen

NOTE: On 9560 combines with 6.8 L engine, the filter must be replaced at least every 500 hours.

2. Batteries. Clean off top of batteries and check level in each cell. Fill to bottom of filler neck with distilled water if needed.

3. Air cleaner element. Service primary filter (C) only when shown by warning light (D). Check precleaner for plugging. Check for leaks and for collapse of aspirator tube. Replace element if plugged.

4. Alternator screen. Clean alternator screen (E) when 50% covered with debris.

OUZXMAG,000190E -19-09DEC02-1/1
