Left-Hand and Right-Hand Gull Wing Doors

CAUTION: Shut off engine, set parking brake and remove key.

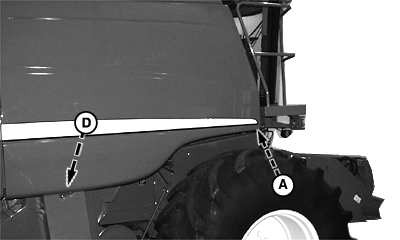

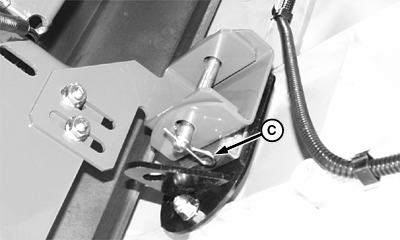

To open left-hand door, remove locking latch and pin (A) from locking plate (B). Reinstall locking latch (C) into pin. Turn latch knob (D) clockwise, then pull out on gull wing door to raise.

A-Pin
B-Locking Plates
C-Locking Latch
D-Latch Knob

OUZXMAG,0001910 -19-15OCT02-1/3

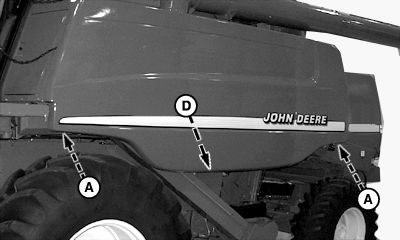

To open right-hand gull wing door, remove locking latch and pin (A) from locking plate (B). Reinstall locking latch (C) into pin. Turn latch knob (D) clockwise, then pull out on gull wing door to raise.

A-Pin
B-Locking plate
C-Locking Latch
D-Latch Knob

OUZXMAG,0001910 -19-15OCT02-2/3

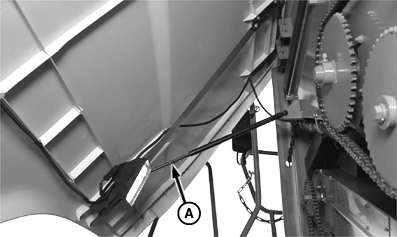

IMPORTANT: Do not use the cylinder (A) as a hand hold or hang anything on these cylinders. This could cause the cylinder rod to deflect and cause damage to the cylinder.

A-Cylinder

OUZXMAG,0001910 -19-15OCT02-3/3
