Replacing Fuel Filter (9540 and 9560 Combines with 6.8 L Engine)

causym CAUTION: Always shut off engine, remove key and set parking brake before performing maintenance work on fuel filter.

Unscrew ring (A) and remove filter element (B).

Insert new filter element and retighten ring.


A-Ring
B-Filter element

ZX1031168

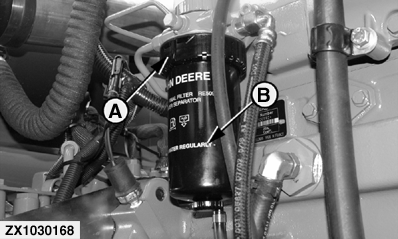

Engine Fuel Filter (9560)

H69357

Engine Fuel Filter (9540)

OUZXMAG,0001915 -19-09DEC02-1/1
