Replacing Water Separator Filter (9540 and 9560 Combines with 6.8 L Engine)

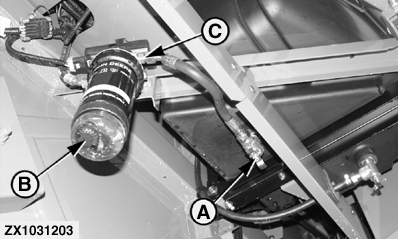

Shut off valve (A).

Drain fuel from separator at drain (B). Remove and replace filter.

Open valve (A). Let air bleed through (B) and fuel line (C).

A-Valve
B-Drain
C-Fuel line

OUZXMAG,0001916 -19-09DEC02-1/1
