Remote Shoe Adjust Switches (Black) (Optional)

Chaffer Switch:

The chaffer switch adjusts chaffer clearance. Push plus (+) symbol for more clearance or push minus (-) symbol for less clearance.

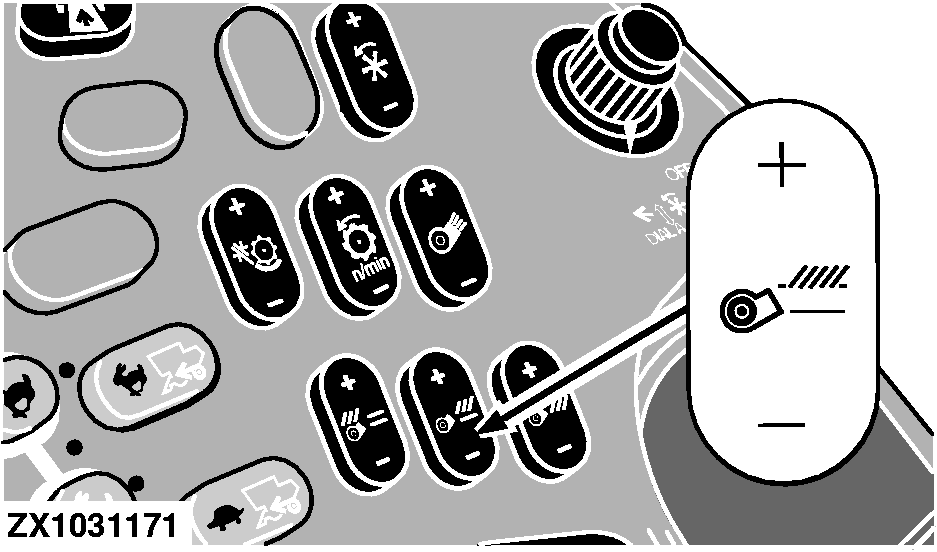

ZX1031171

Chaffer Adjust Switch-In Cab

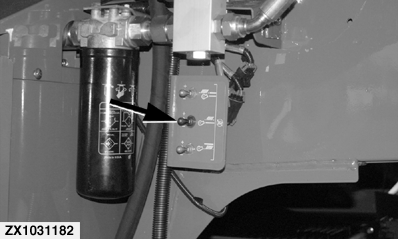

ZX1031182

Chaffer Adjust Switch-Outside Cab

OUZXMAG,000191D -19-16OCT02-1/3

Precleaner Switch:

This switch adjusts precleaner clearance. Push plus (+) symbol for more clearance or push minus (-) symbol for less clearance.

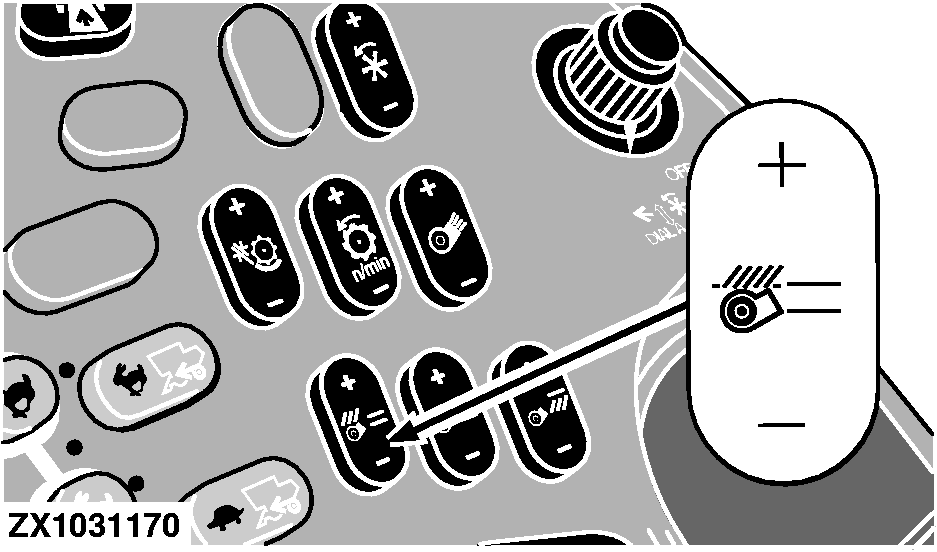

ZX1031170

Precleaner Adjust Switch-In Cab

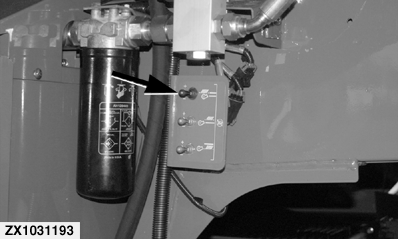

ZX1031193

Precleaner Adjust Switch-Outside Cab

OUZXMAG,000191D -19-16OCT02-2/3

Sieve Switch:

This switch adjusts sieve clearance. Push plus (+) symbol for more clearance or push minus (-) symbol for less clearance.

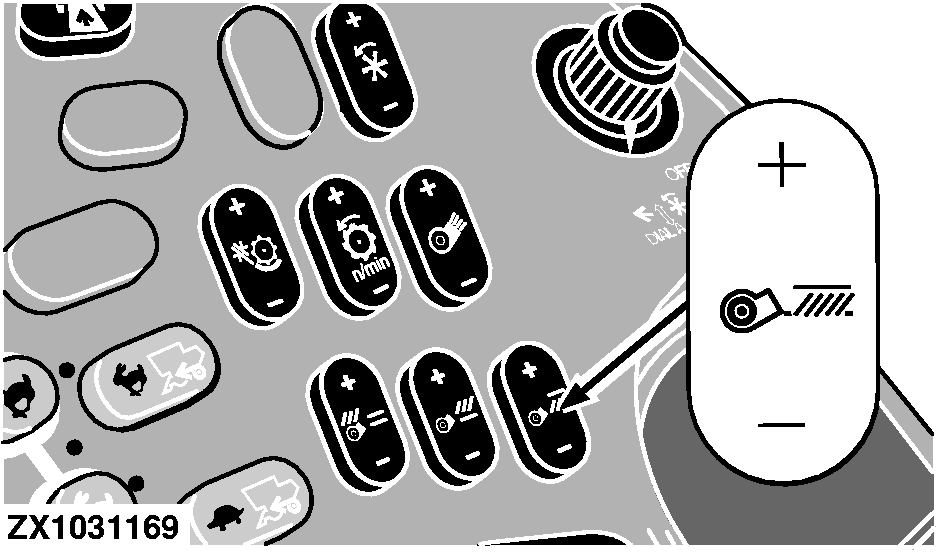

ZX1031169

Sieve Adjust Switch-In Cab

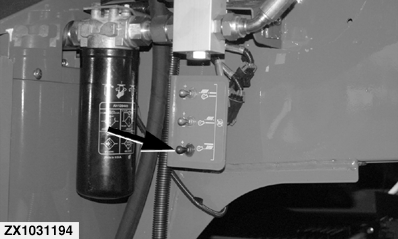

ZX1031194

Sieve Adjust Switch-Outside Cab

OUZXMAG,000191D -19-16OCT02-3/3
