Automatic Combine Adjust Display Settings

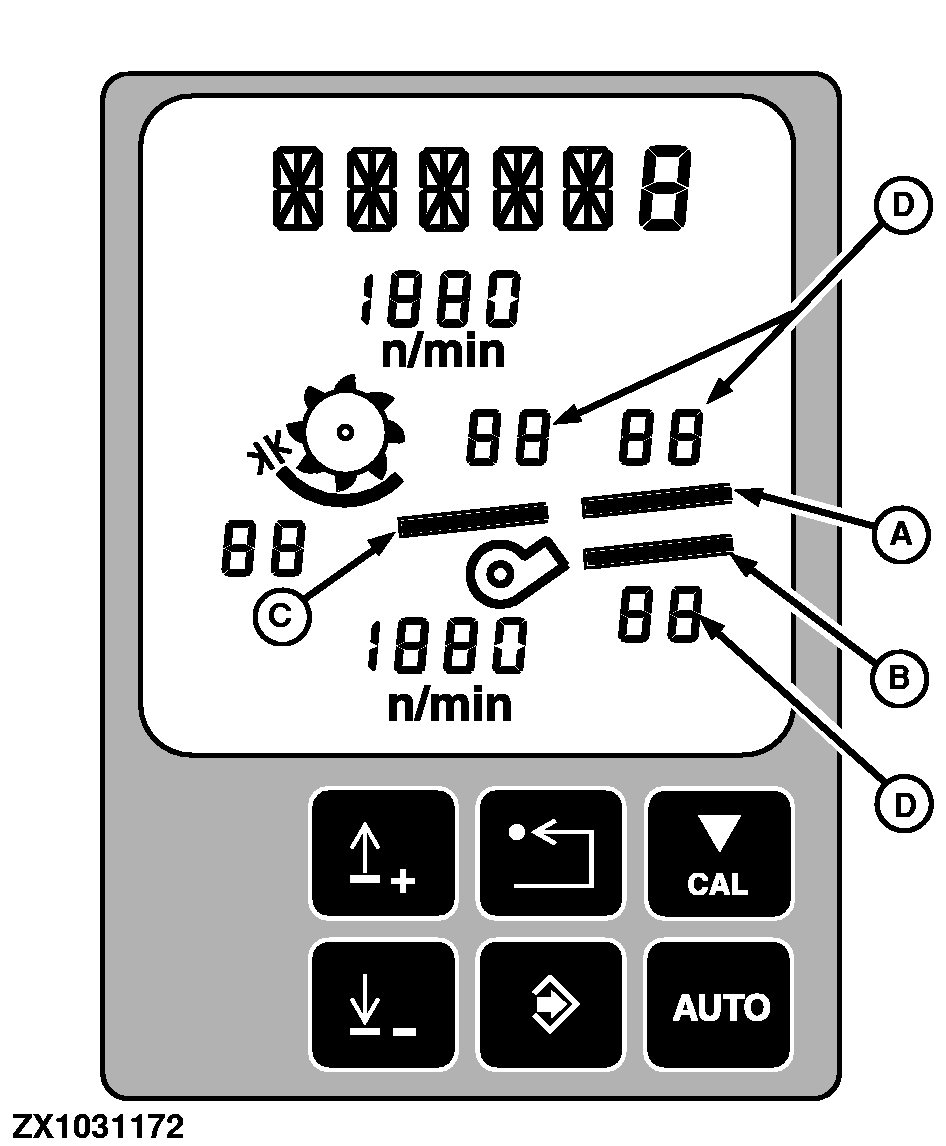

NOTE: The display below will be shown when displaying factory crop one settings (WHEAT1, WHTDF1, etc). The sieve indicator bar (B), chaffer adjusting bar (A), precleaner adjusting bar (C) and the preset number (D) will be displayed 10 seconds before disappearing.

After 10 seconds have elapsed, the numbers displayed will switch from set points to actual values.

NOTE: If combine is equipped with remote shoe adjust option the elements always open first to allow cleanout when making auto-adjustments.

A-Chaffer Indicator Bar
B-Sieve Indicator Bar
C-Precleaner Adjusting Bar
D-Preset Number

OUZXMAG,000191E -19-16OCT02-1/1
