Re-torque Wheel Nuts

Retorque wheel nuts as specified in Sections "Wheels, Axles and Additional Weights" and "Lubrication Charts, Periodic Service".

Failure to do this could result in a wheel falling off during operation, causing the machine to tip over with serious injury to the operator and extensive damage to the machine.

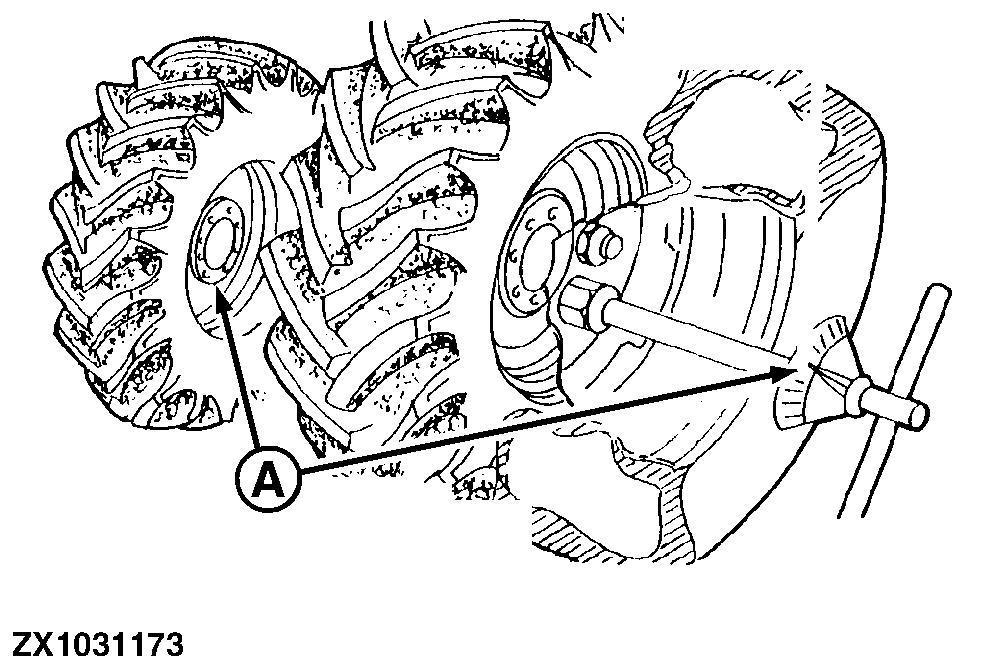

A-Non powered axle-260 N·m (192 lb-ft)
-Powered axle-200 N·m (147 lb-ft) + 1/4 turn

OUZXMAG,000191F -19-16OCT02-1/1
