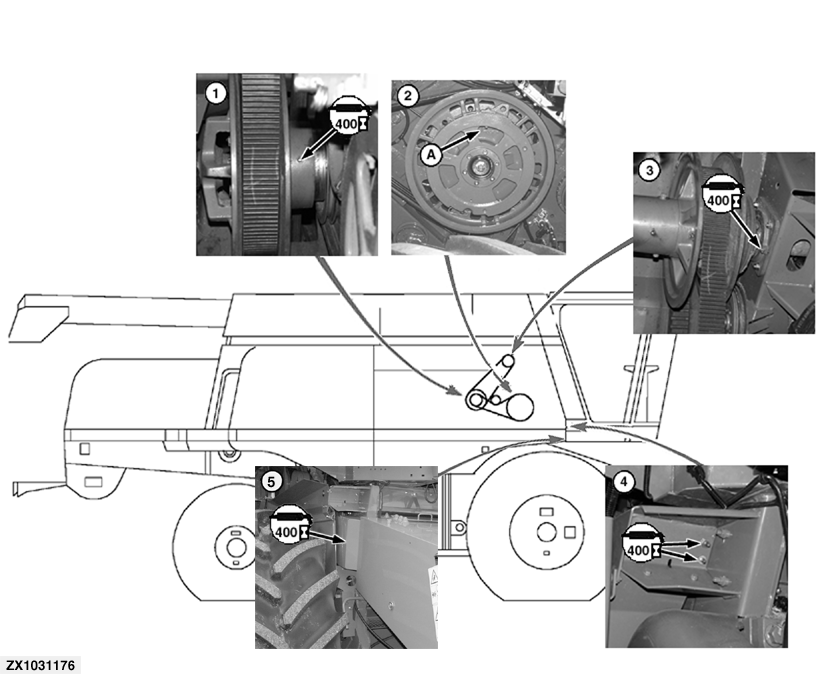

2. Dual Range Cylinder Drive Bearing.

Dual Range Cylinder Drive Gear Case-Check oil level. Arrow (A) must point up to check oil at plug. Oil must come to bottom edge of plug hole.

3. Primary Countershaft Bearing.

4. Right-Hand Lube Bank (Two Fittings):

• Top-Cylinder shaft bearing.
• Bottom-Variable cylinder bearing.

5. Feeder house ratchet type slip clutch.
