Stopping the Engine

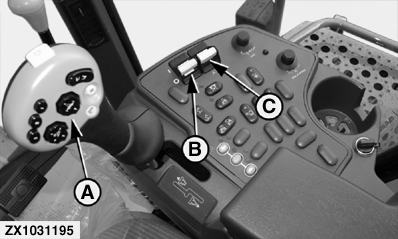

1. Move multi-function lever (A) to neutral and disengage header and separator using switches (B) and (C).

IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine may cause damage to these parts.

2. Before stopping engine that has been operating under working load, idle at least one minute to cool turbocharger.

causym CAUTION: Remove key and set parking brake before leaving the combine.

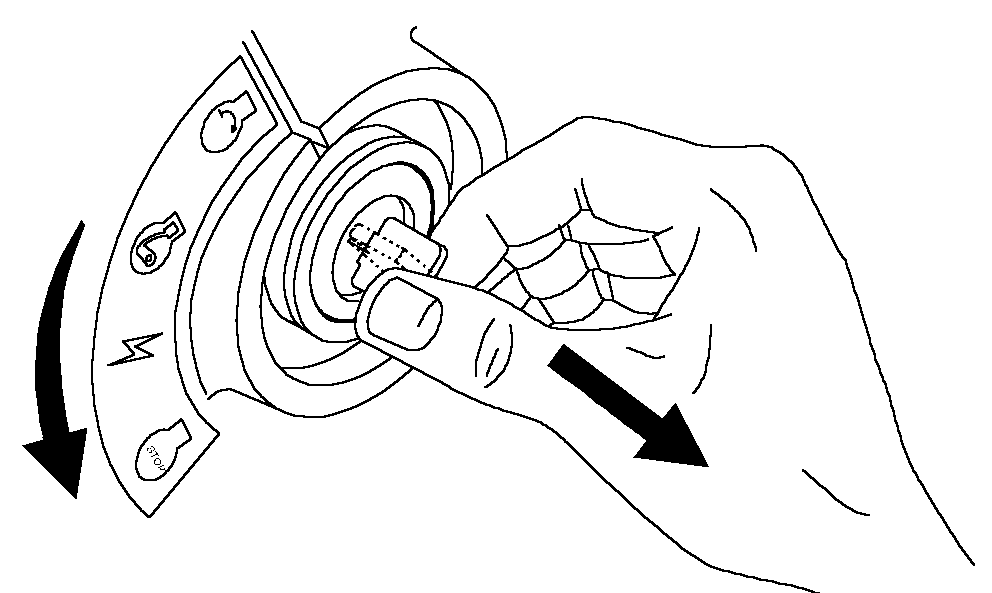

3. Use start switch to shut off engine.


A-Multi-function lever
B-Header engage switch
C-Separator engage switch

H52673
ZX1031195

OUZXMAG,0001937 -19-23OCT02-1/1
