Operating With HILLMASTER II Leveling System (Optional)

CAUTION: The HILLMASTER II System may only be used in the field. Before driving on public roads, the combine must be lowered to transport position, so that the maximum permissible height of 4.0 m (13 ft. 1 in.) is not exceeded.

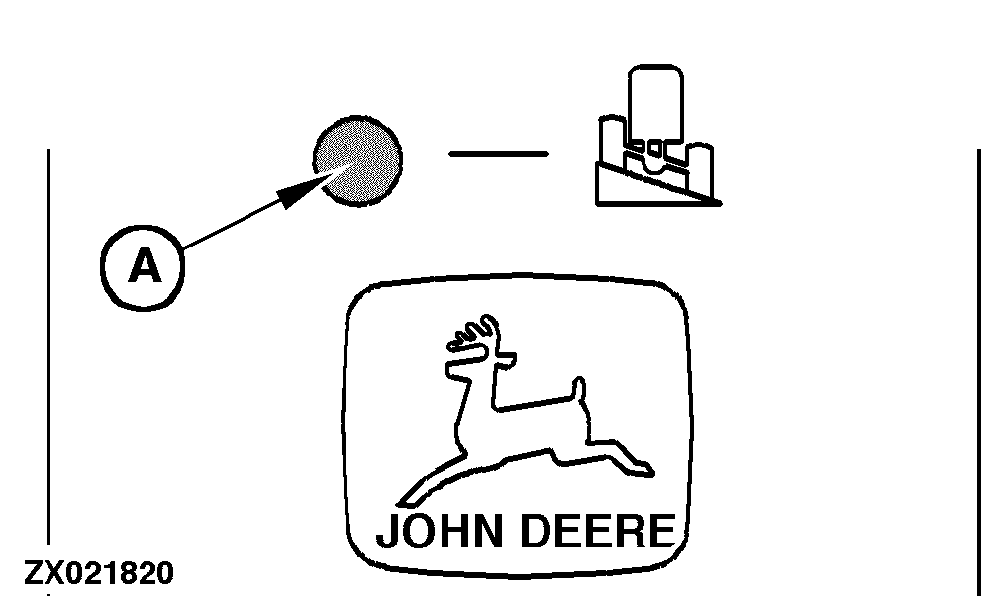

CAUTION: Particular care must be taken when turning the combine on slopes. Never turn combine faster than the leveling system can keep combine in level position. Always turn uphill! When the green indicator light (A) glows (tilt limit has been reached), take extreme care!

IMPORTANT: Before actuating manual leveling control switch, make sure that parking brake is released.

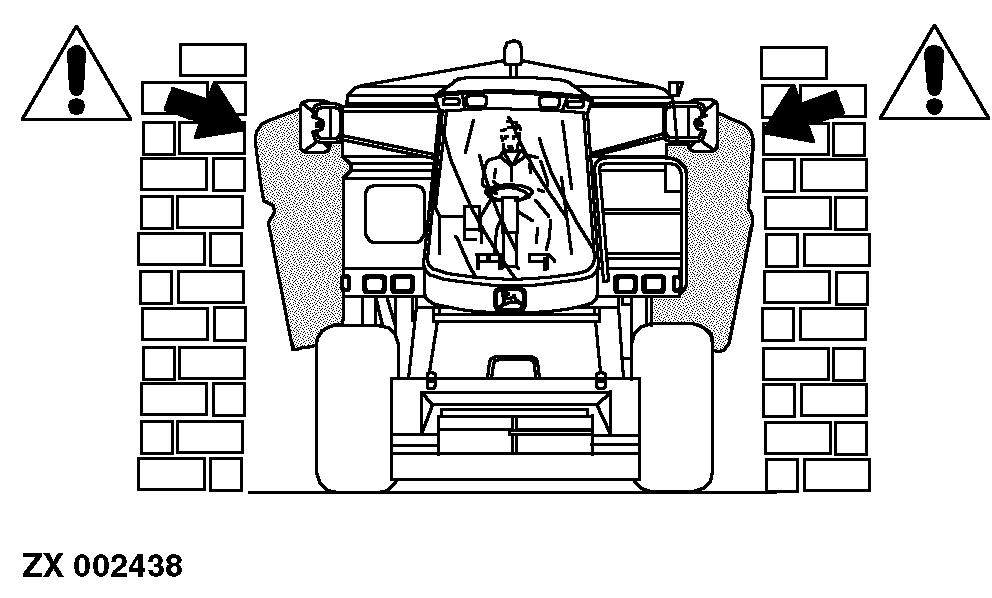

IMPORTANT: When parking the combine, do not park too close to other machines or walls of storage buildings. This is important as combine may tilt due to internal loss of oil pressure when parked for some time. This may cause damage to combine and adjacent machines or walls.

The HILLMASTER II combine is designed for slopes up to 15%.

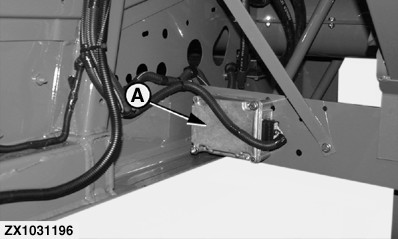

The HILLMASTER II control unit (B) is located on the left-hand side of the machine and uses an electronic tilt sensor to detect the slope.
