Dual-Range Cylinder Drive Shear Bolts

Shear bolt (A) is located in the cylinder drive sheave. Extra bolts are located at (B) for storage.

IMPORTANT: Use only 1/4 x 3 in. Grade (D) bolts (John Deere part number 19H2151).

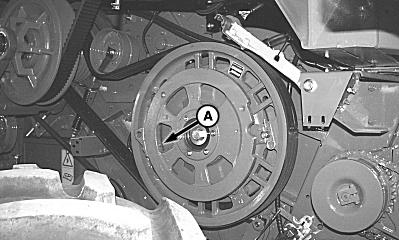

A-Shear bolt

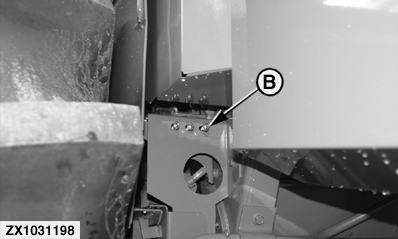

B-Extra bolts

OUZXMAG,0001939 -19-23OCT02-1/1
