Adjusting Chopper Vanes (Manual)

CAUTION: Shut of engine, set parking brake and remove key.

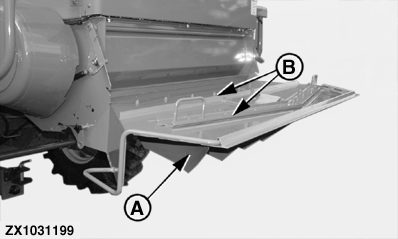

Adjust vanes (A) so material is spread over a wide area but does not cover uncut crop.

Loosen bolts (B), adjust vanes and tighten bolts.

A-Vanes
B-Bolts
