50 Hours or Weekly

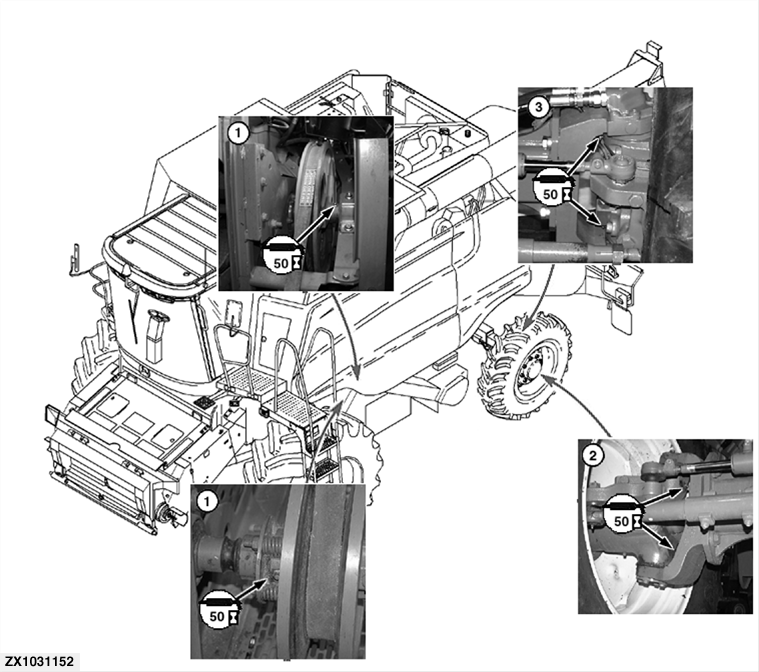

ZX1031152

1. Cleaning fan variable sheaves.

2. Rear axle spindles - standard axle (both sides).

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots at 10

hours. In normal conditions grease at 50 hours.

3. Motor pivots and two-speed four-wheel drive (both sides). Lube two fittings.

OUZXMAG,000193B -19-24OCT02-1/1
