OMZ93035: 9540, 9560, 9580, 9640, 9660 and 9680 WTS Combines, Block File: OUZXMAG_000193E_19

2000 Hours

A-Drain hole
B-Cap

C-Plug
D-Sump

E-Tube

F-Plug

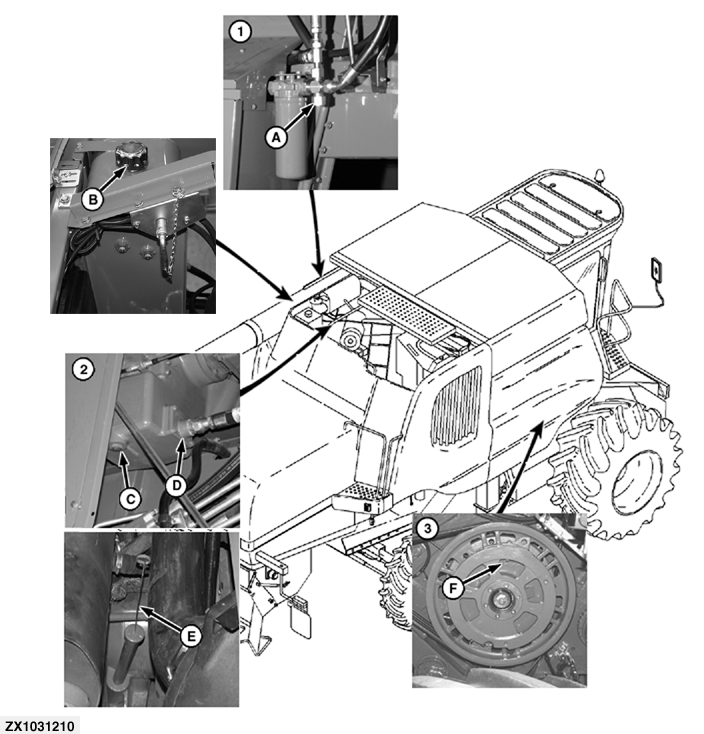

1. Hydraulic/hydrostatic reservoir. Drain at (A). Clean screen and cap (B) and refill. Oil must show above lower sight glass and below top sight glass.

2. Main gear case. Drain at plug (C). Clean breather on dipstick. Clean screen in sump at (D). Refill at tube (E).

3. Dual-range gear case. Drain at plug (F). Add oil and check level with arrow up. Do not get oil on belts.
