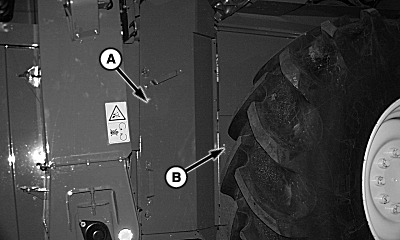

Remove cap screw and lock nut from shield (A), shield (B) and remove shields.

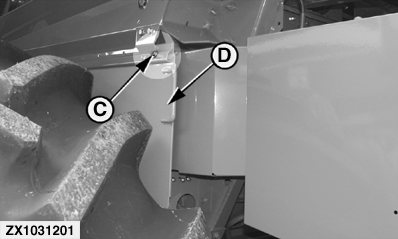

Remove cap screw (C) and slide shield (D) rearward
A-Shield B-Shield C-Cap Screw D-Shield
OUZXMAG,0001940 -19-24OCT02-1/1
