Feeder House Side Shields

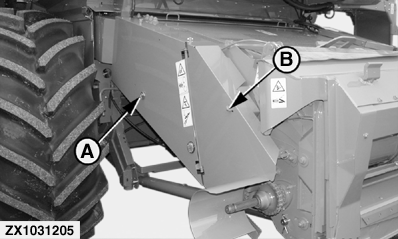

The side shields on the right-hand and left-hand ends of the feeder house each consist of one front and one rear part. Loosen steel strap (A) and swing the front shield open for service. Remove cap screw (B) to remove rear shield. |
|
CAUTION:
Raise feeder house, lower safety stop, shut off engine, set parking brake and remove key.
OUZXMAG,0001942 -19-24OCT02-1/1 |
