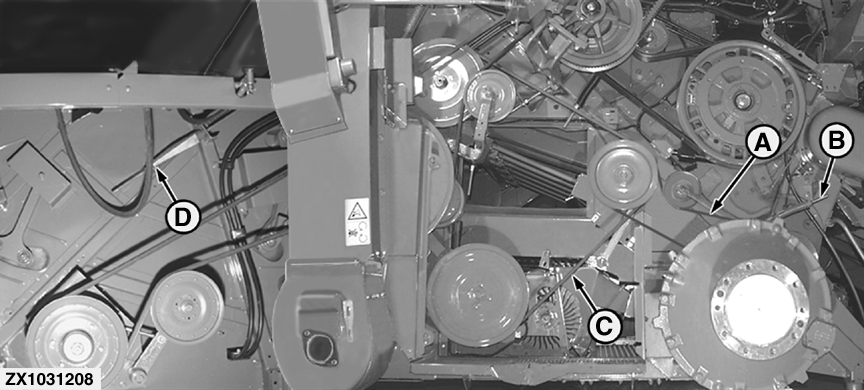

A-Top belt

B-Spring tensioner

C-Bottom belt

D-Spring tensioner

CAUTION: Engine must be off, parking brake set and key removed.

To replace the top belt (A) loosen spring tensioner (B).

Roll belt under secondary countershaft belt, tailings belt and clean grain belt.

Install new belt in reverse order (see belt routing diagram).

Tighten spring tensioner until washer aligns with end of gauge.

To replace the bottom belt (C) loosen spring tensioner (D).

Remove top belt from pulley then remove bottom belt.

Install new belt in reverse order (see belt routing diagram).

Tighten spring tensioner until washer aligns with end of gauge.

Install top belt and tighten spring tensioner.
