Replacing Cleaning Fan Belt

Start engine, engage separator and operate fan to it's fastest speed.

CAUTION: Engine must be off, key removed and parking brake set.

Disengage separator and shut off engine.

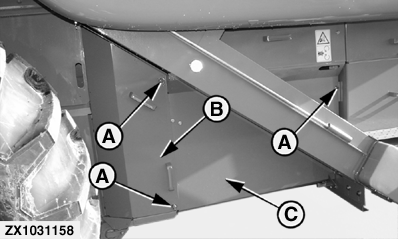

Remove cap screws and lock pins (A) from shields.

Remove front shield (B) and rear shield (C).

A-Cap Screws and Lock Pins
B-Front Shield
C-Rear Shield

OUZXMAG,0001945 -19-25OCT02-1/2

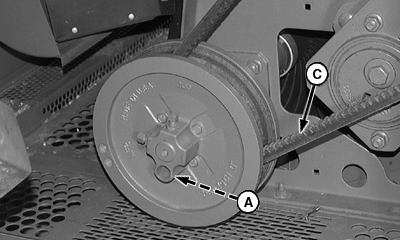

Wedge bottom sheave (A) open.

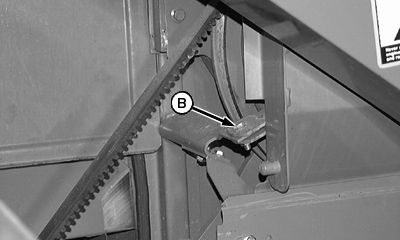

Disconnect front arm (B) and swing out of the way.

Remove belt (C) from upper and lower sheave.

Install new belt.

Reinstall shields.

A-Bottom Sheave
B-Front Arms
C-Belt

OUZXMAG,0001945 -19-25OCT02-2/2
