Replacing Cleaning Shoe Light Bulb

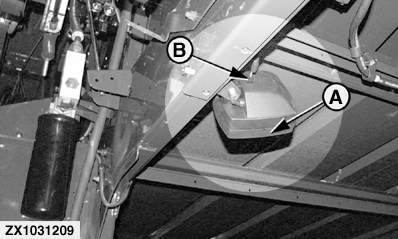

Remove cover (A).

Disconnect wiring lead (B). Clean dirt from light

Push in and twist retainer ring counterclockwise. Bulb pulls straight out.

Install new bulb in reverse order.

A-Cover
B-Wiring Lead

OUZXMAG,0001946 -19-25OCT02-1/1
