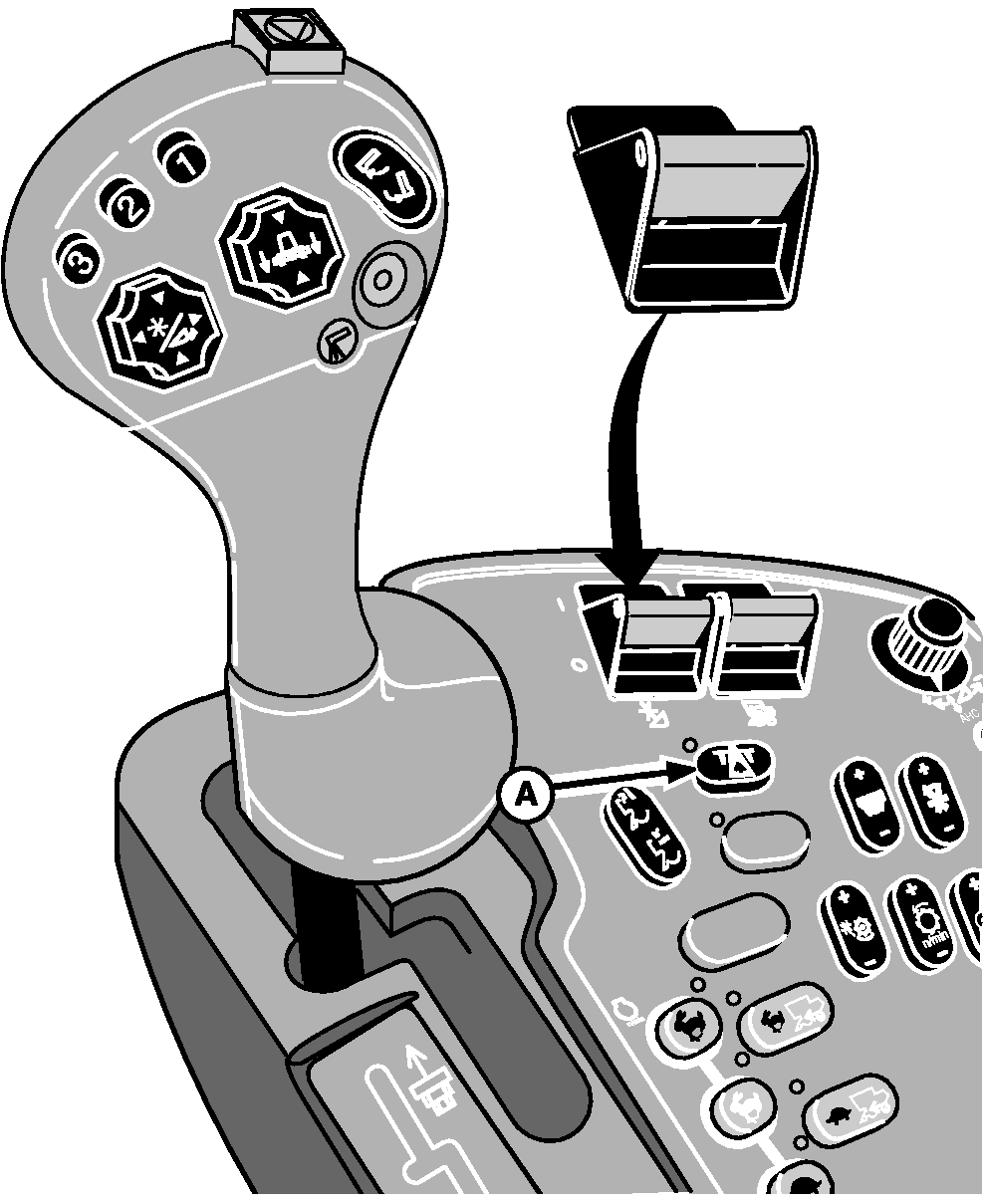

Header Engage/Reverser Switch (Yellow)To engage the header drive, press the switch down and then forward. To disengage the header drive, pull the switch back. To engage the feeder house reverser, pull switch back and hold it in this position. To re-engage the header after it had been stopped with the Quick Stop switch, turn header switch off and then back on. Operator must be seated to operate header. If the operator leaves the seat after engagement, the header is automatically disengaged after five seconds.
|
|
ZX08994,00000FE -19-22FEB02-1/1 |
