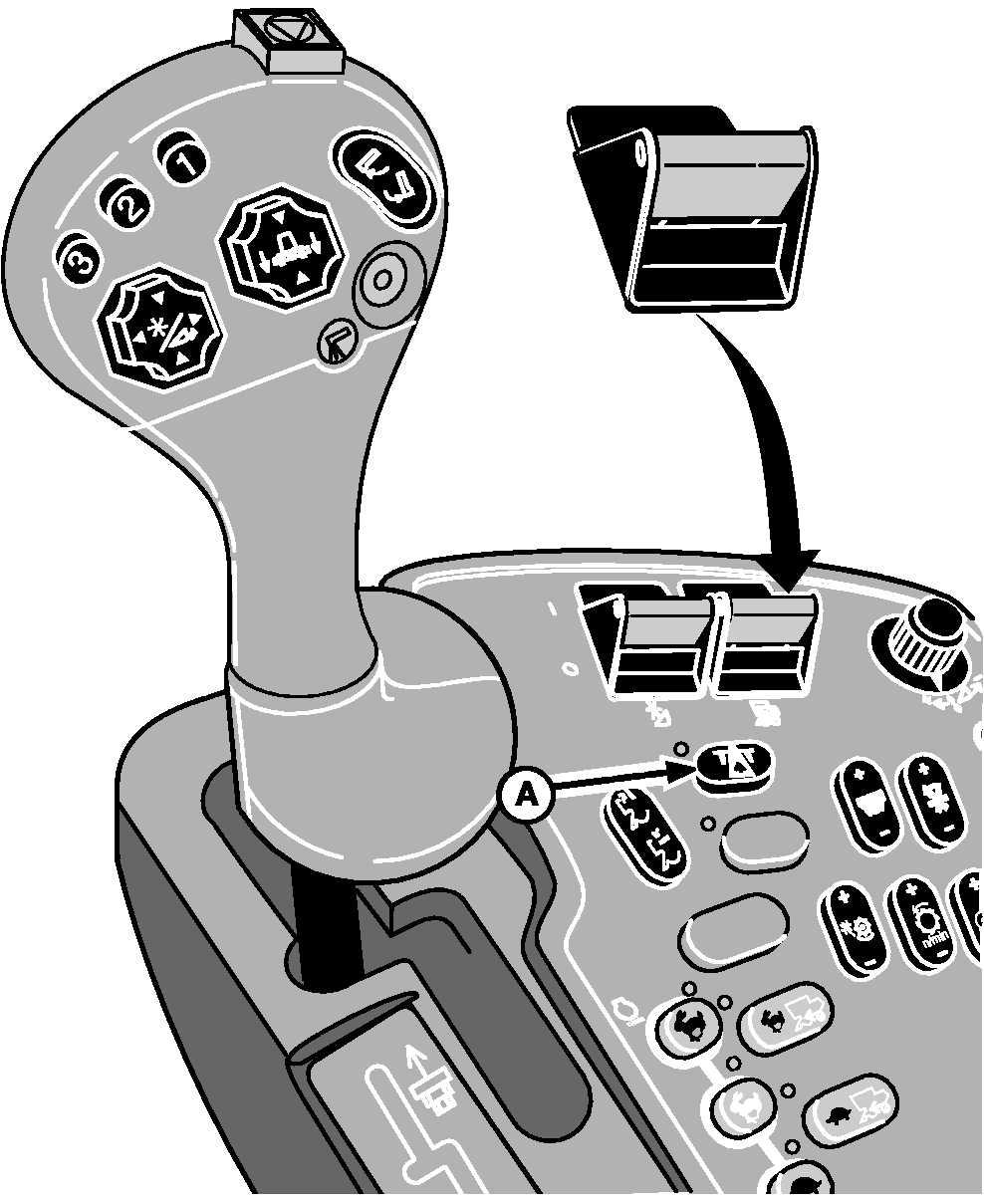

Separator Engage Switch (Yellow)Turns separator drive on/off. Road transport disconnect switch (A) must be in the field position. Push down and forward to lock switch in the ON position. Pull back to turn off. Switch must be in OFF position to start engine. The separator will disengage if the beater speed drops below 300 rpm. NOTE: Engage separator prior to the header.
|
|
ZX08994,00000FF -19-22FEB02-1/1 |
