Road Transport Disconnect Switch (Black)

The road transport disconnect switch must be in the road position when transporting the combine on the road.

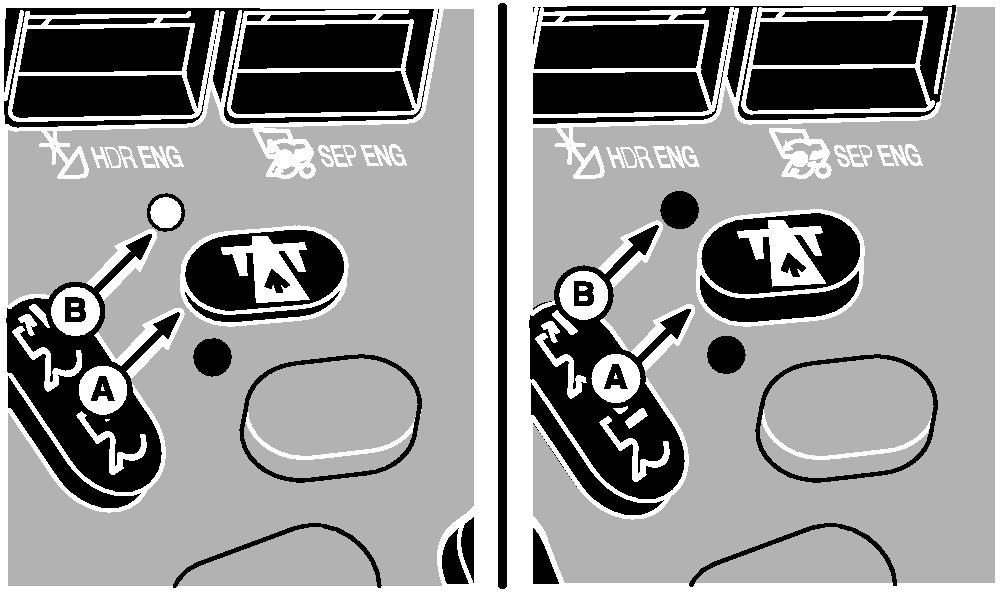

Pressing switch (A) will activate indicator light (B). It indicates that the switch is in road position. Pressing the switch will prevent the following functions:

• HEADERTRAK Control Functions
• Reel raise/lower and reel fore/aft
• Unloading auger drive
• Unloading auger swing
• Separator drive
• Header drive
• Header raise/lower

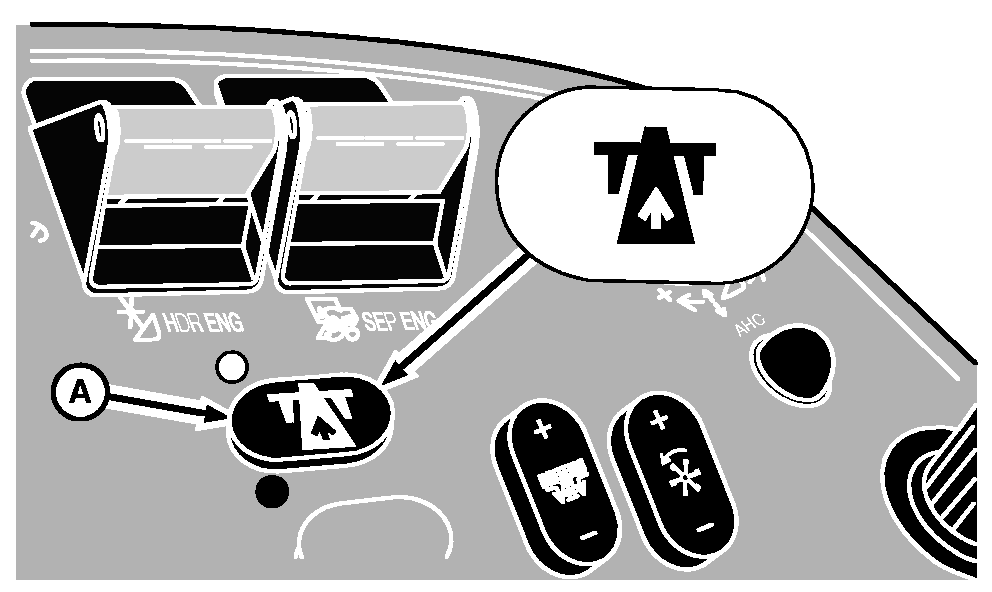

A-Road transport disconnect switch
B-Indicator light

ZX08994,0000102 -19-22FEB02-1/1
