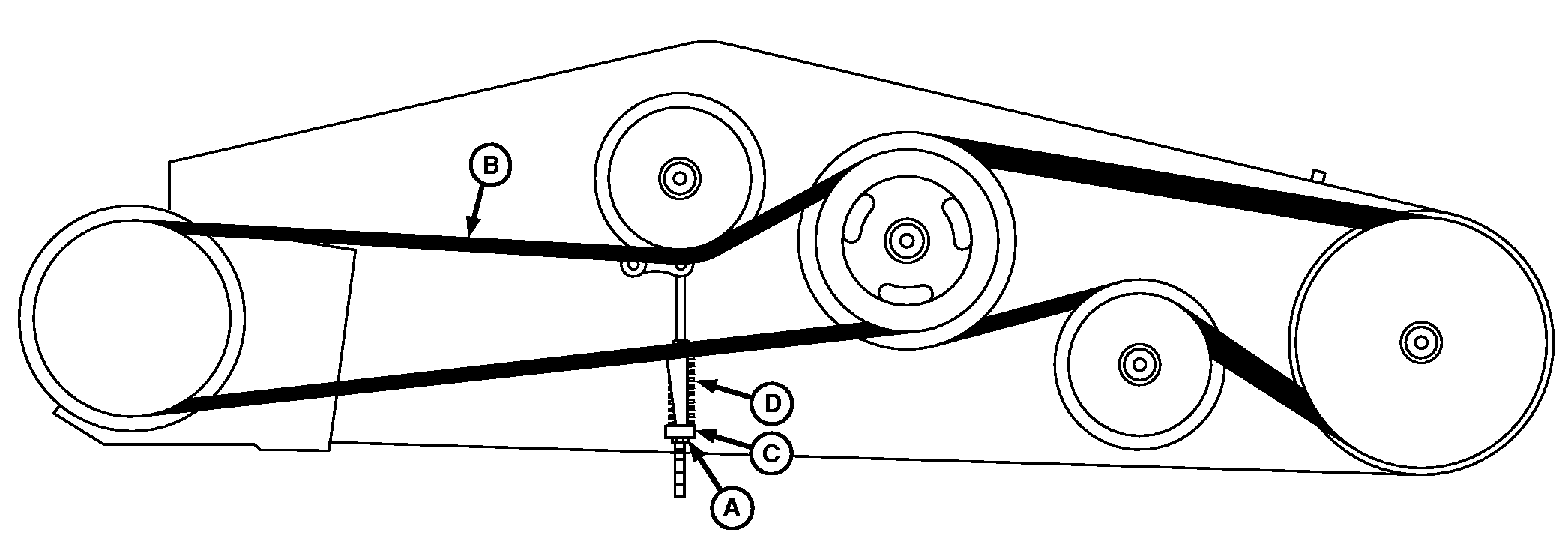

A-Nuts

B-Belt

C-Washer

D-Gauge

CAUTION: Shut of engine, set parking brake and remove key.

Tighten nuts (A) until washer (C) aligns with end of gauge (D). This will correctly tension belt (B).

ZX08994,0000106 -19-22FEB02-1/1
