Unloading Auger Swing Switch (Black)

Press top of switch (B) to swing auger out. Press bottom of switch (B) to swing auger in.

For manual control, press the switch down part way and hold until auger reaches the desired position. The auger stops when the switch is released.

For automatic control, press the switch all the way down and release it. The auger will swing to the full out or full in position without holding the switch.

IMPORTANT: To ensure that the auger swings fully out or in while in automatic mode, run engine at high idle.

NOTE: The automatic auger swing function will not operate when the unloading auger drive is engaged.

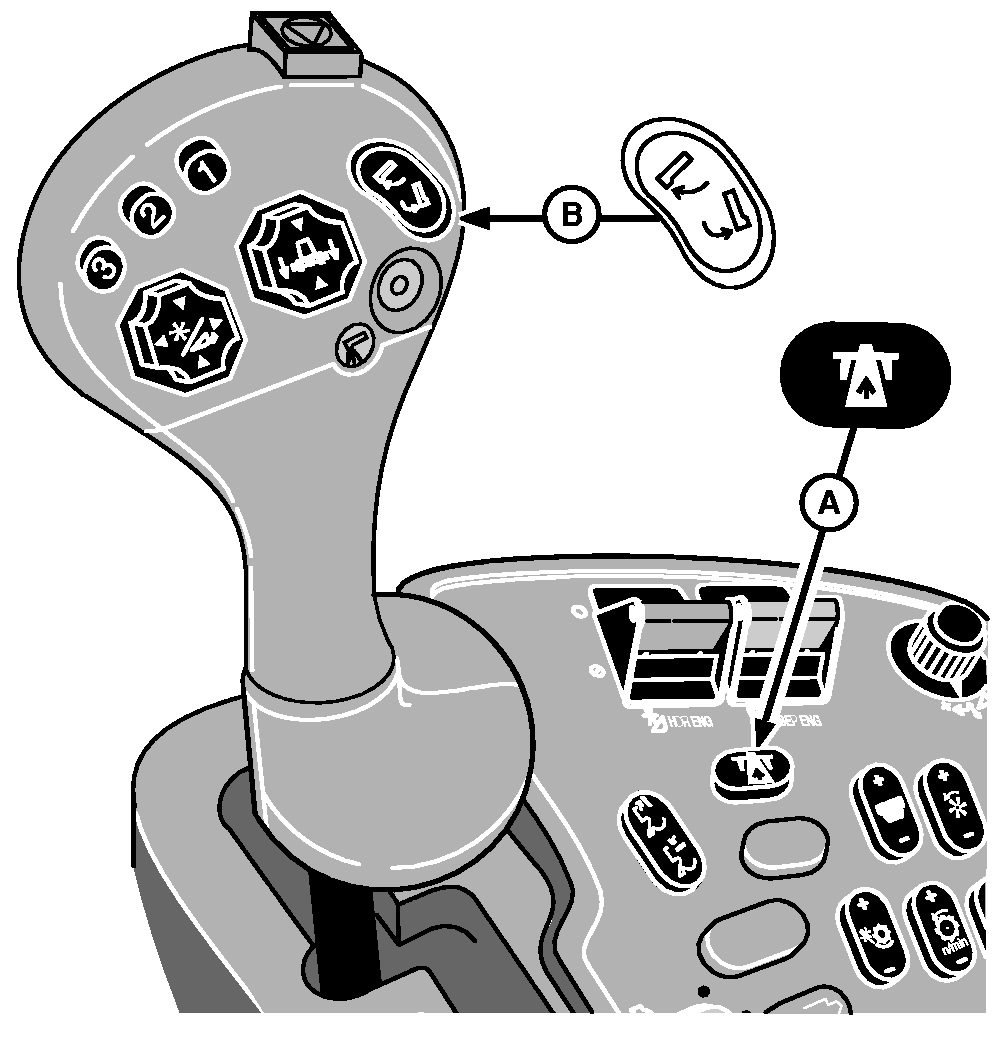

A-Road transport disconnect switch
B-Unloading auger swing switch
