Valve for Raising/Lowering Header (Proportional Valve)

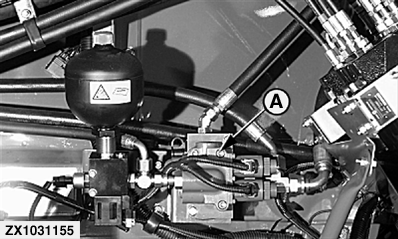

Oil at a flow of 52 L/min (13.7 gpm) reaches valve (A) from the first pump.

The pressure relief valve is set to 21000 kPa (210 bar; 3045 psi).

The valve block consists of 3 valves:

  • Neutral flow valve
  • Solenoid valve "raise"
  • Solenoid valve "lower"

When raising, the neutral flow valve automatically closes.
