Adjusting Unloading Auger Drive Cylinder

To adjust the stop:

CAUTION: Shut of engine, set parking brake and remove key.

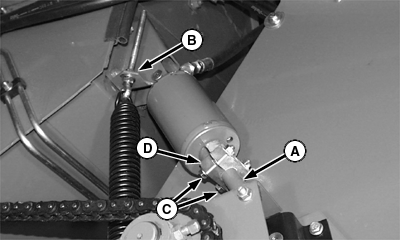

Mark present stop position on rod with tape (A).

Loosen nut (B) to relieve spring tension.

Loosen screws (C) and slide stop (D) toward cylinder 13 mm (1/2 in.).

Tighten screws (C).

Tighten nut (B) to its original position.

NOTE: When installing new belts, adjust stop to its original position (stop positioned against barrel of cylinder with rod fully retracted).

A-Adhesive tape
B-Nut
C-Screws
D-Stop

ZX08994,0000113 -19-25FEB02-1/1
