Cross Auger Drive Shear Bolt

CAUTION: Shut of engine, set parking brake and remove key.

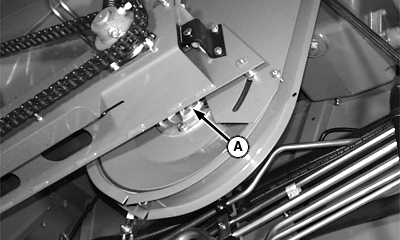

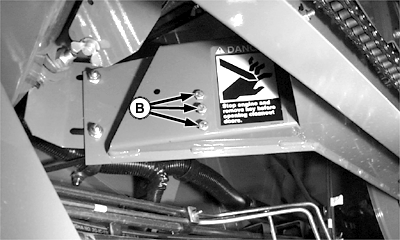

Shear bolt (A) protects the unloading auger system. Three extra bolts (B) are provided to the left of the drive.

Use only a M8 x 60 class 8.8 cap screw as a shear bolt (John Deere part number 19M7185).

Coat machined face and pilot shoulder of hub with grease whenever shear bolt is replaced.

A-Shear bolt
B-Extra bolts
