Forward and Reverse Travel

CAUTION: Always adapt ground speed of combine to road or field conditions.

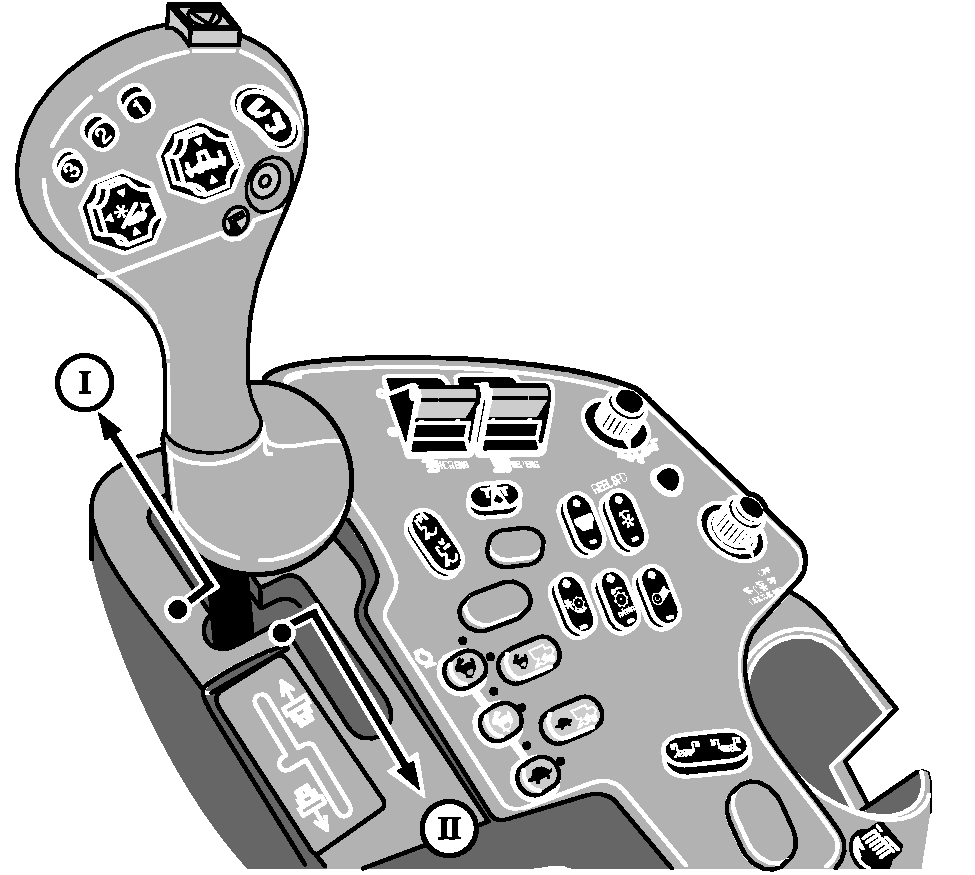

Forward travel (I)

Slowly push ground speed drive lever from "Neutral" to "Forward" (I).

Reverse travel (II)

Slowly pull ground speed drive lever from "Neutral" to "Reverse" (II).

NOTE: An acoustic alarm sounds in reverse travel.

ZX08994,000011D -19-25FEB02-1/1
