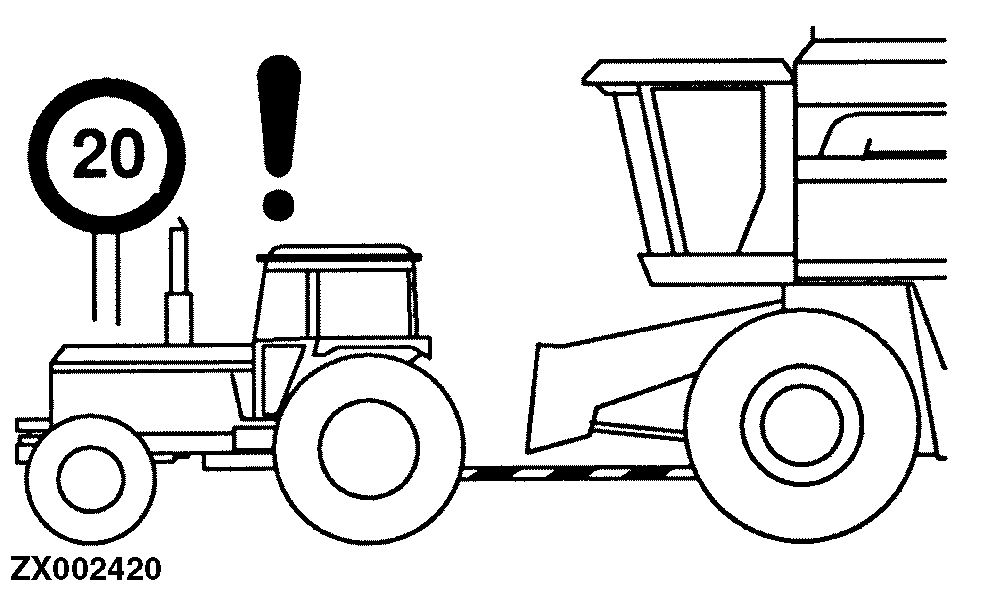

Towing the Combine

CAUTION: To ensure proper braking capability, do not remove drive shafts or push back couplers.

IMPORTANT: When the combine is towed, the transmission lube pump is not working and exceeding 8 km/h (5 mph) could damage the transmission.

To prepare combine for towing see Transporting Combine on Public Roads in this Group.

Move gear shift lever to neutral.

Do not exceed a maximum speed of 8 km/h (5 mph).

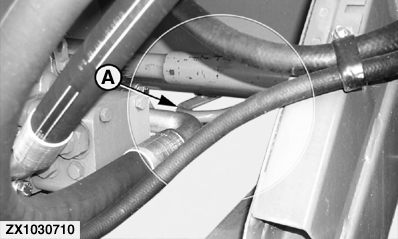

Hook a suitable chain to towing eye (A), to tow the combine. Be certain the chain will not damage any hydraulic lines.

ZX08994,0000122 -19-05MAR02-1/1
