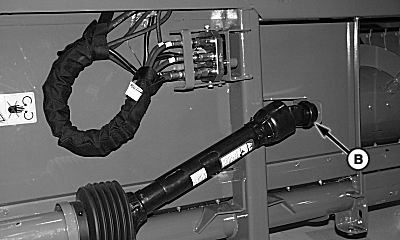

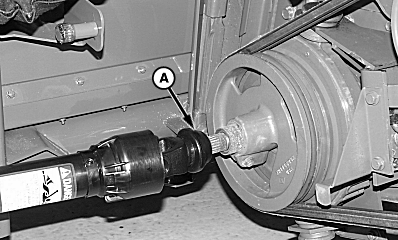

Removing Header from Feeder HouseNOTE: For complete attaching and detaching procedures refer to the header Operator's Manual. Disconnect telescoping drive shafts from feeder house at the quick coupler (A) on left and right sides. Place telescoping drive shafts in storage position (B).
|
|
ZX08994,0000126 -19-06MAR02-1/1 |
