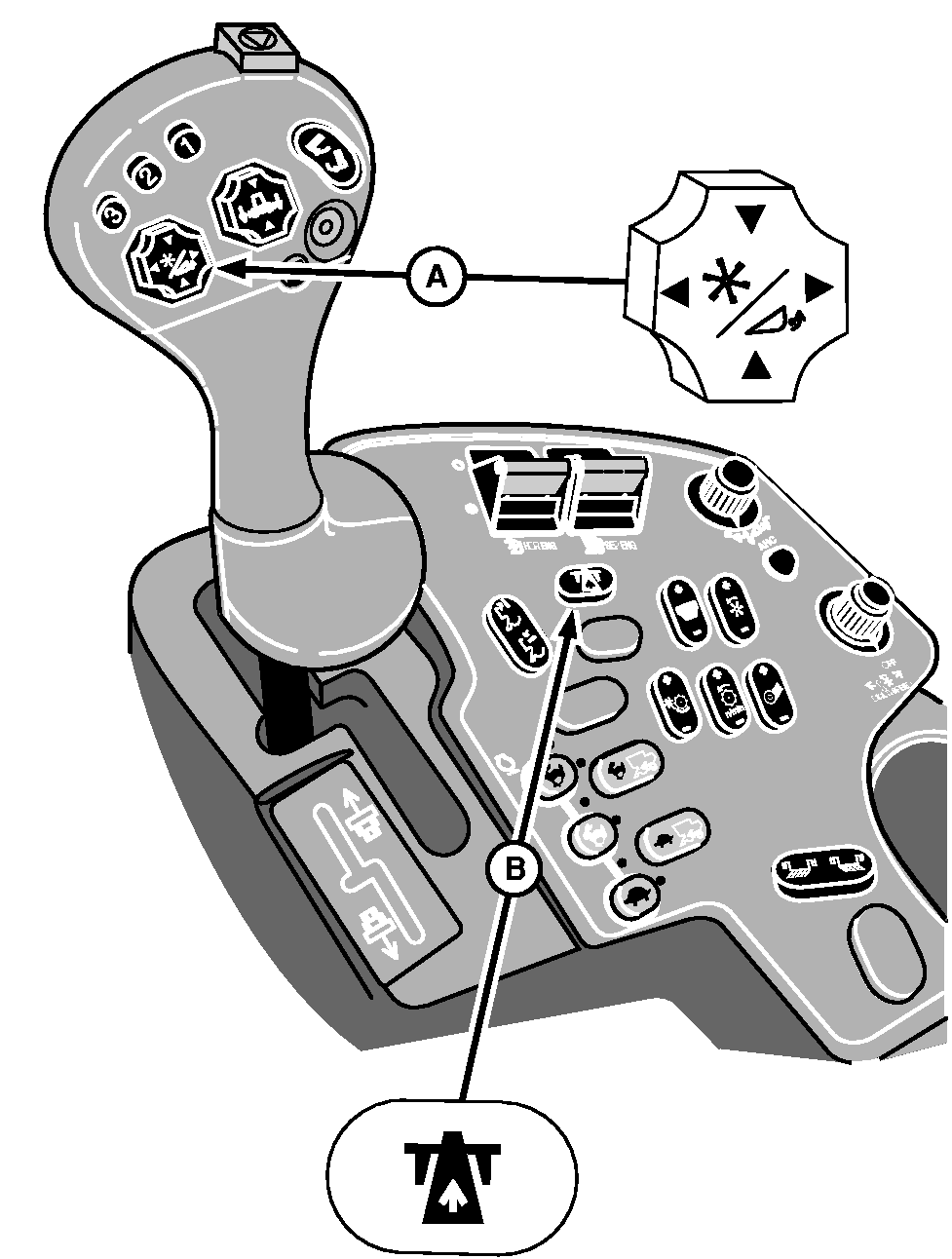

Reel Lift and Reel Fore/Aft Switch (Black)To operate reel lift and reel fore/aft switch (A), the road transport disconnect switch (B) must be in field position. Push and hold bottom of switch to raise reel. Push and hold top of switch to lower reel. Push and hold left side of switch to move reel forward. Push and hold right side of switch to move reel rearward.
|
|
ZX08994,000012A -19-15MAR02-1/1 |
