Clock Calibration

NOTE: The clock calibration must be performed when battery was disconnected or the battery switch was moved to OFF position.

Press diagnostics switch. dIA will appear on the triple display tachometer.

ZX018729

ZX08994,000012B -19-19MAR02-1/6

Press the calibration switch. CAL and ACF will appear on the tachometer.

ZX018730

ZX08994,000012B -19-19MAR02-2/6

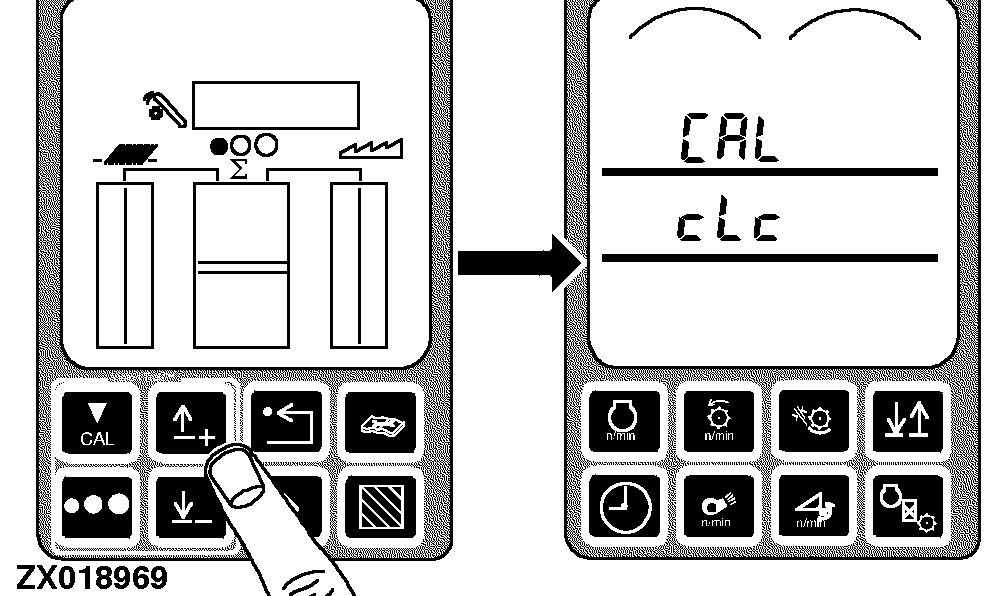

Press the arrow-up or arrow-down keys until CAL and cLc appears on the tachometer.

ZX018969

ZX08994,000012B -19-19MAR02-3/6

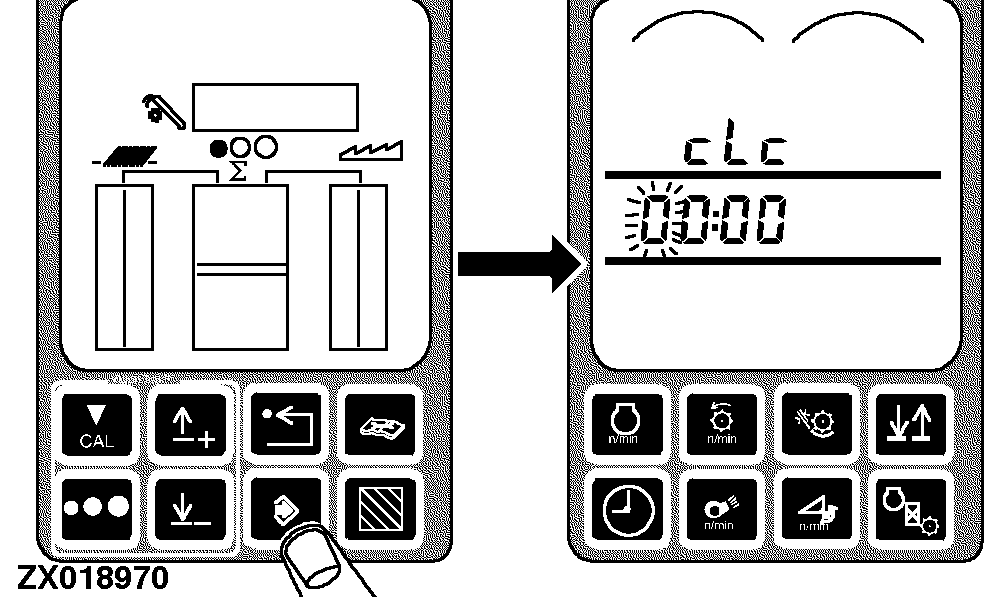

Press the enter switch to access the clock calibration mode. cLc and 00:00 will appear on the tachometer and the first digit will flash.

ZX018970

ZX08994,000012B -19-19MAR02-4/6

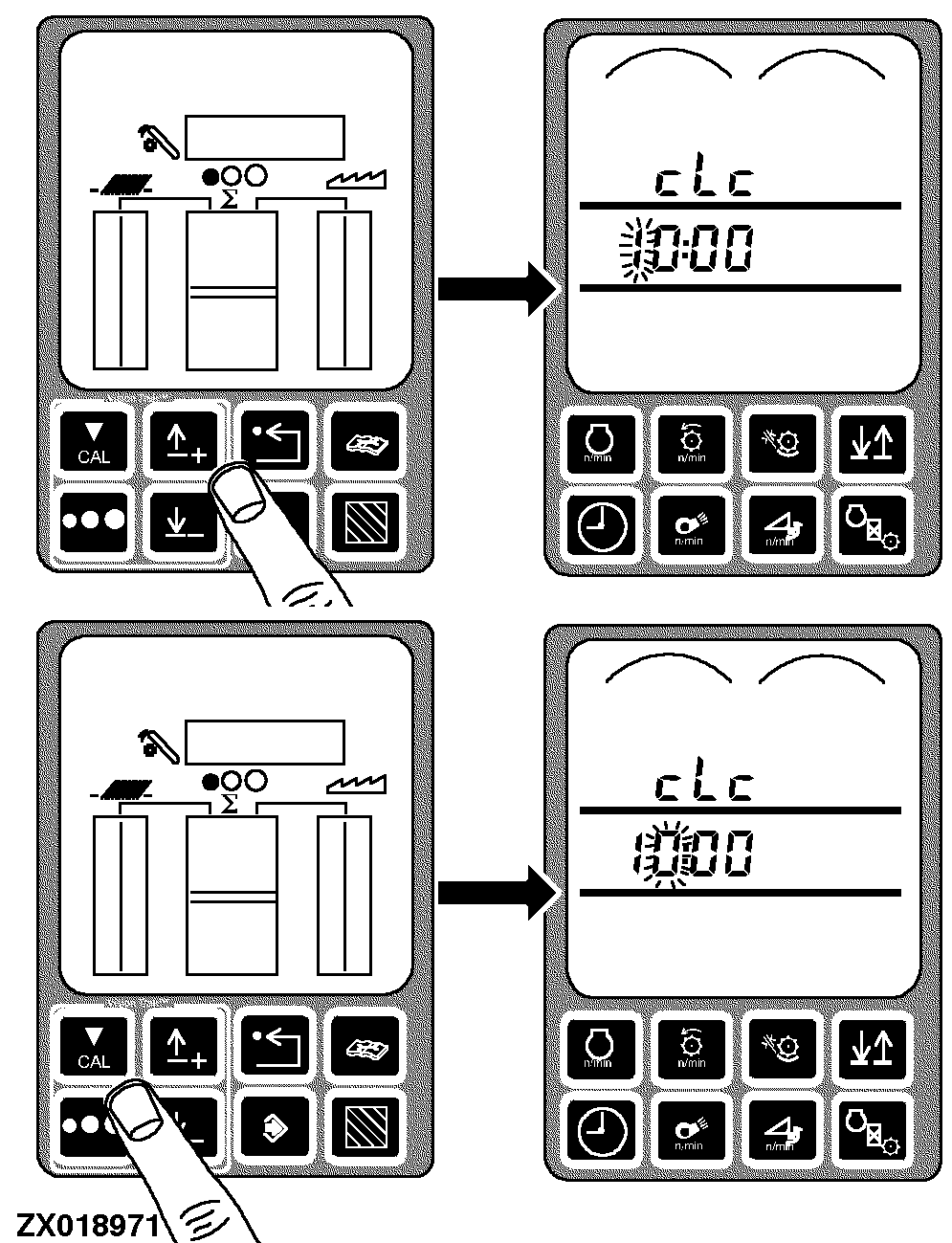

Press the arrow-up or arrow-down keys to adjust. Press the calibration switch, the second digit will flash.

Continue in the same manner until the fourth digit will flash.

ZX018971

ZX08994,000012B -19-19MAR02-5/6

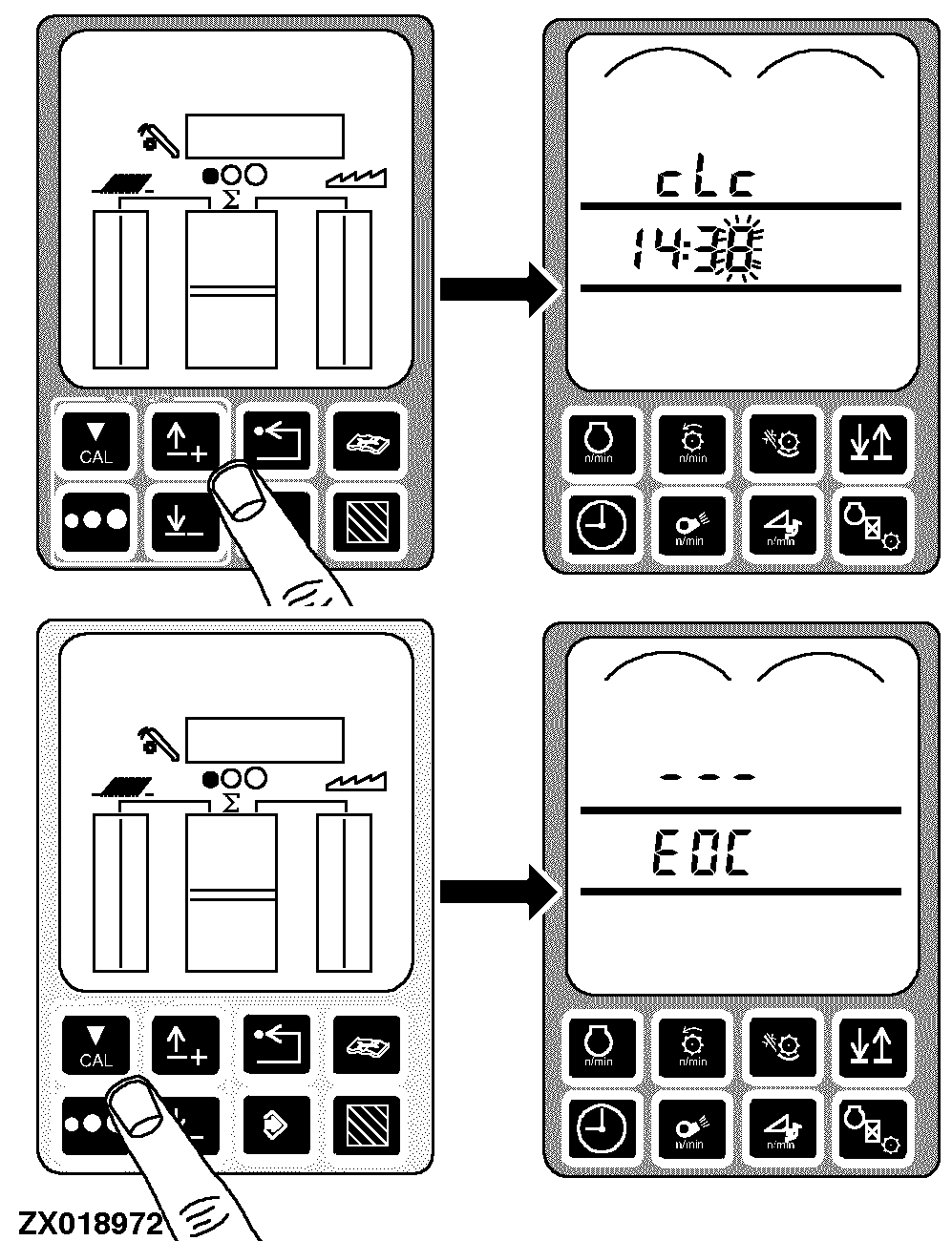

Press the arrow-up or arrow-down keys to adjust.

Press the calibration switch. EOC will appear on the tachometer.

Press the enter switch to store the calibration value or press the back arrow switch to abort the calibration (and not save values).

Press the back arrow switch to return to normal operation.
